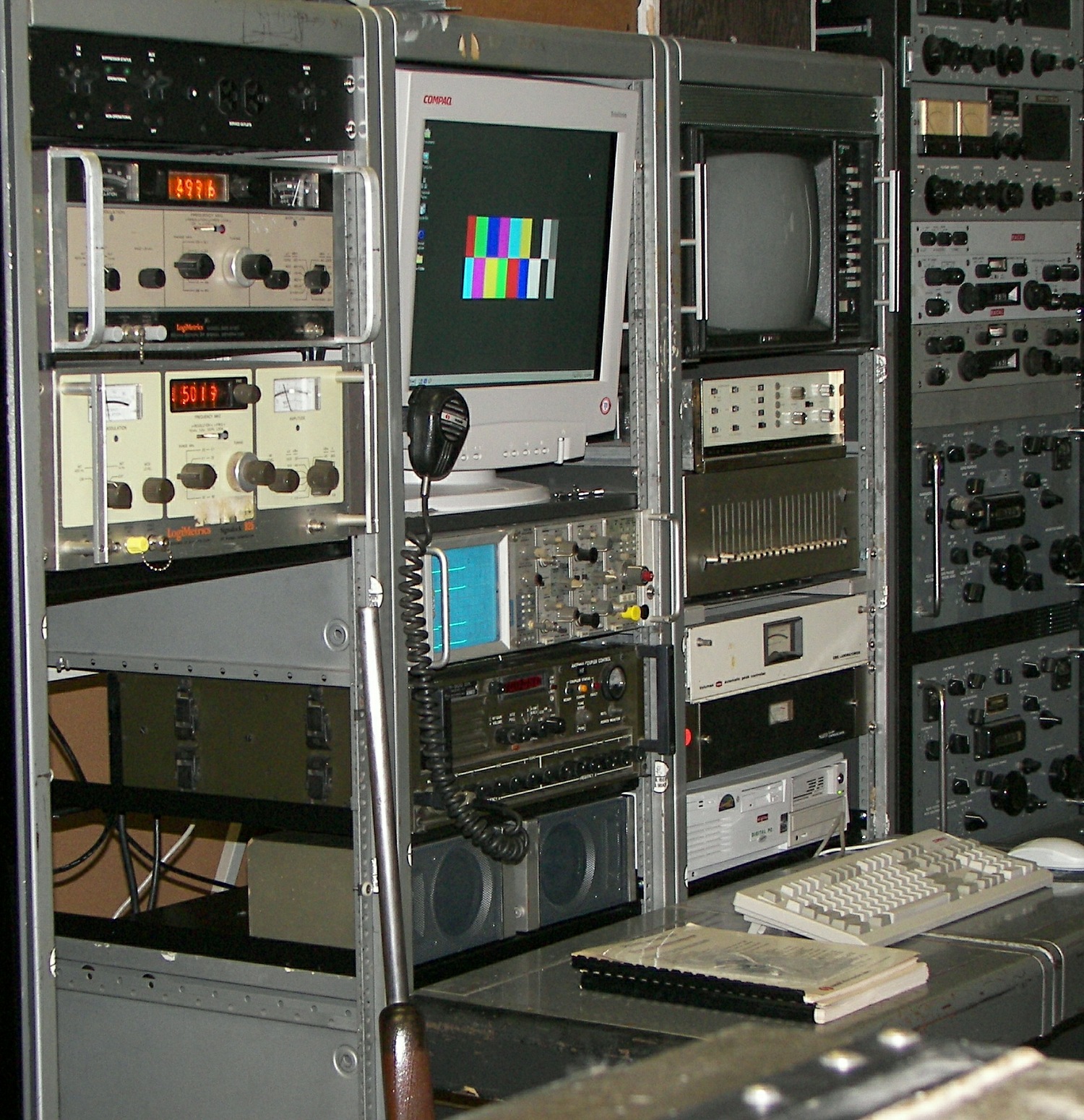

Progress on the KD5OEI operator console as of May 12 2006

Left rack, top to bottom: AC power panel, Older laboratory type precision oscillators for VFO #1 and VFO #2

Middle rack, top to bottom: 19" computer CRT, TEK 4-channel 100MHz scope dedicated for monitoring modulation, audio, I.F , etc., Sunair GSB900DX HF tranceiver, compace "full range" speakers.

Right rack, top to bottom: 12" video monitor, modulator driver amp (Stromberg-Carlson 30 watt HiFi amp), EQ, CBS compressor limiter, Marti compressor limiter, 300MHz pentium with sound card and win2K for digital modes.
