RCA 1-K reference material

BTA-250K exciter

Home|This page as PDF (18MegaBytes)

This web page is a direct quotation, albeit lengthy, of a copyrighted work.
Use of this information for research and other scholarly work is permitted under the 'fair use' provision of the law.
Copyright information appears in the first page of the reference material below.
NOTE: schematic is not included in the PDF. Please view it below in the table.

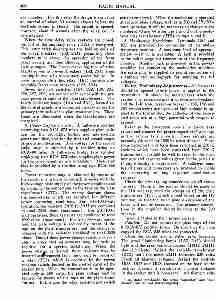

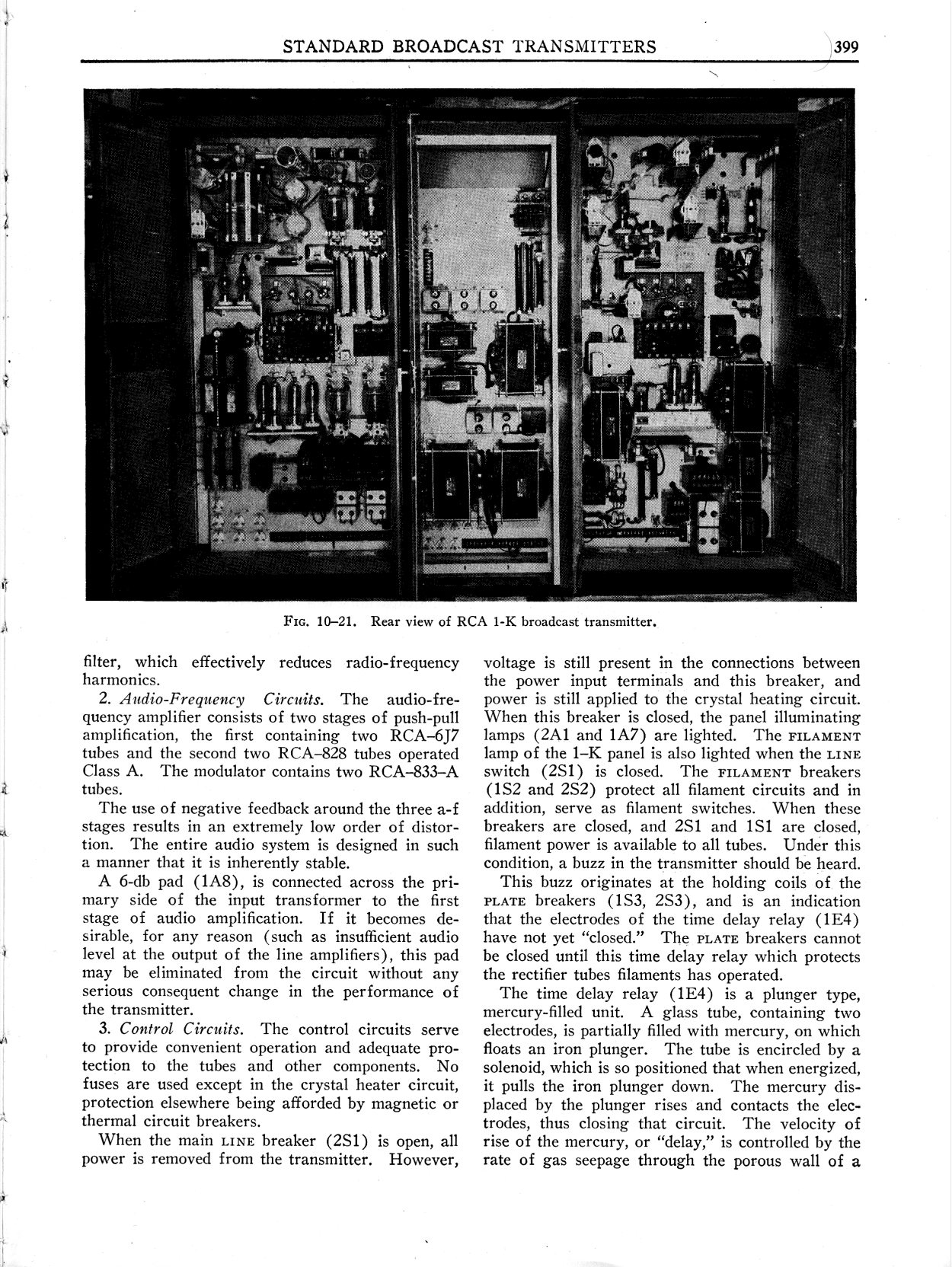

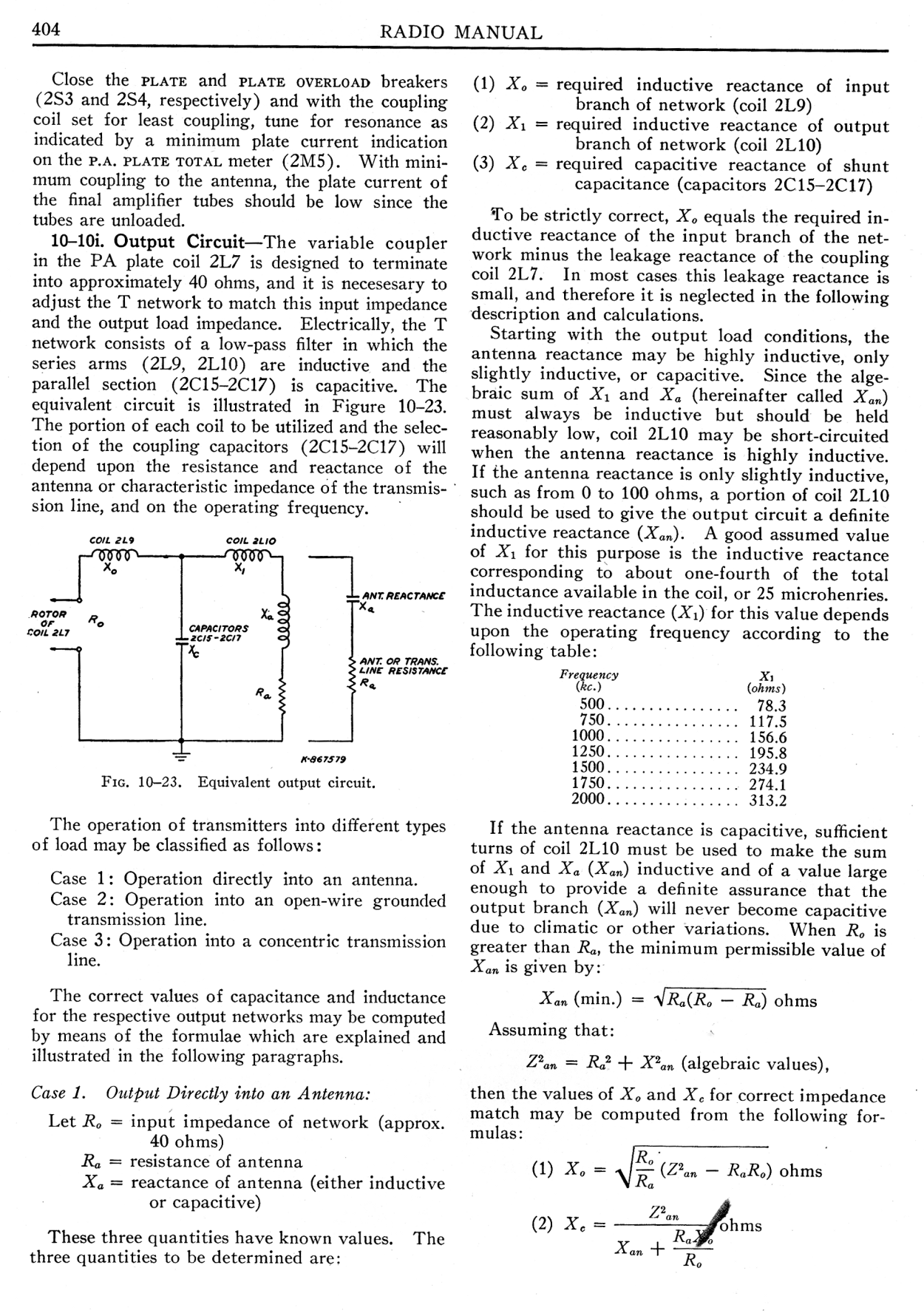

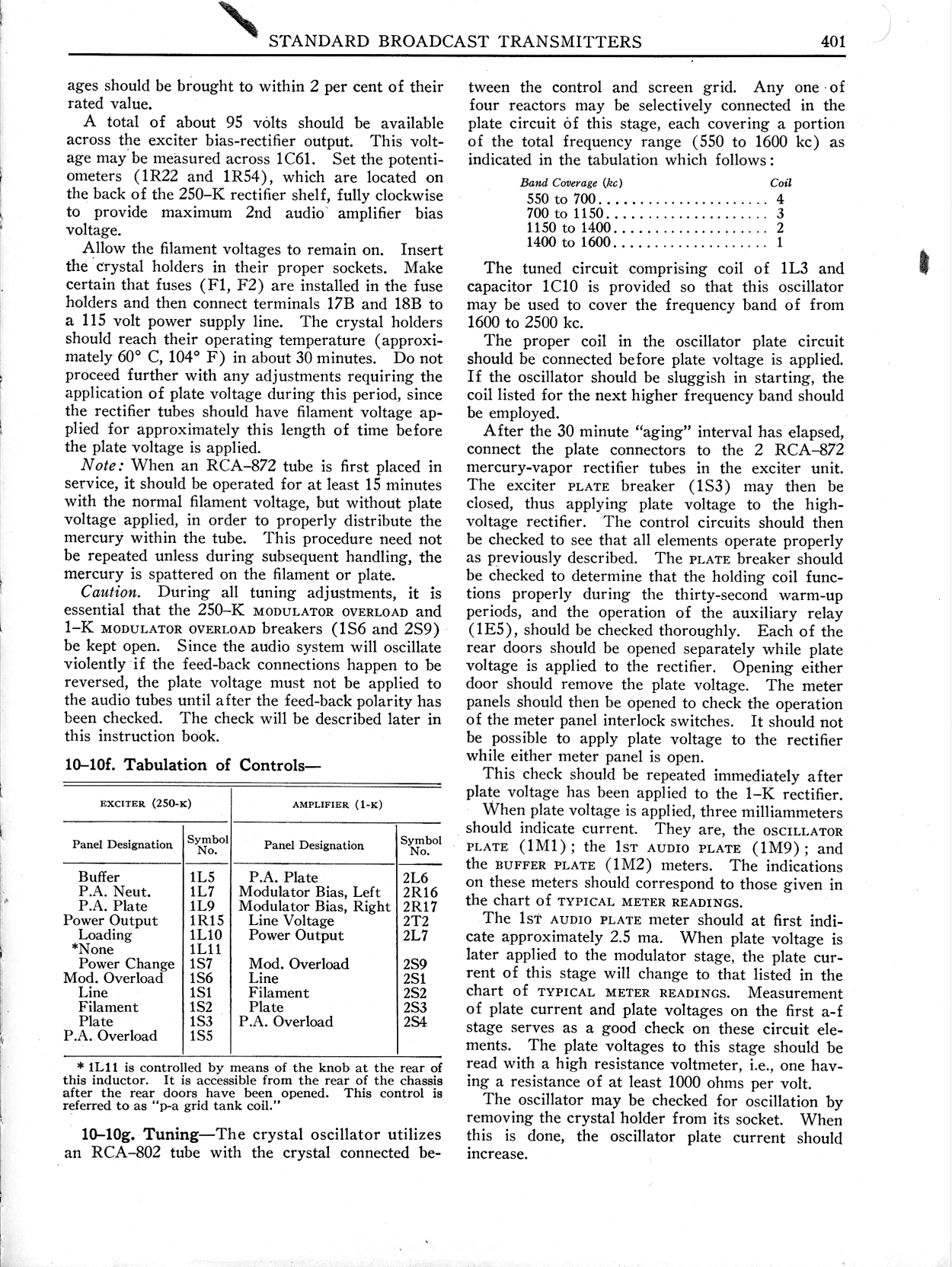

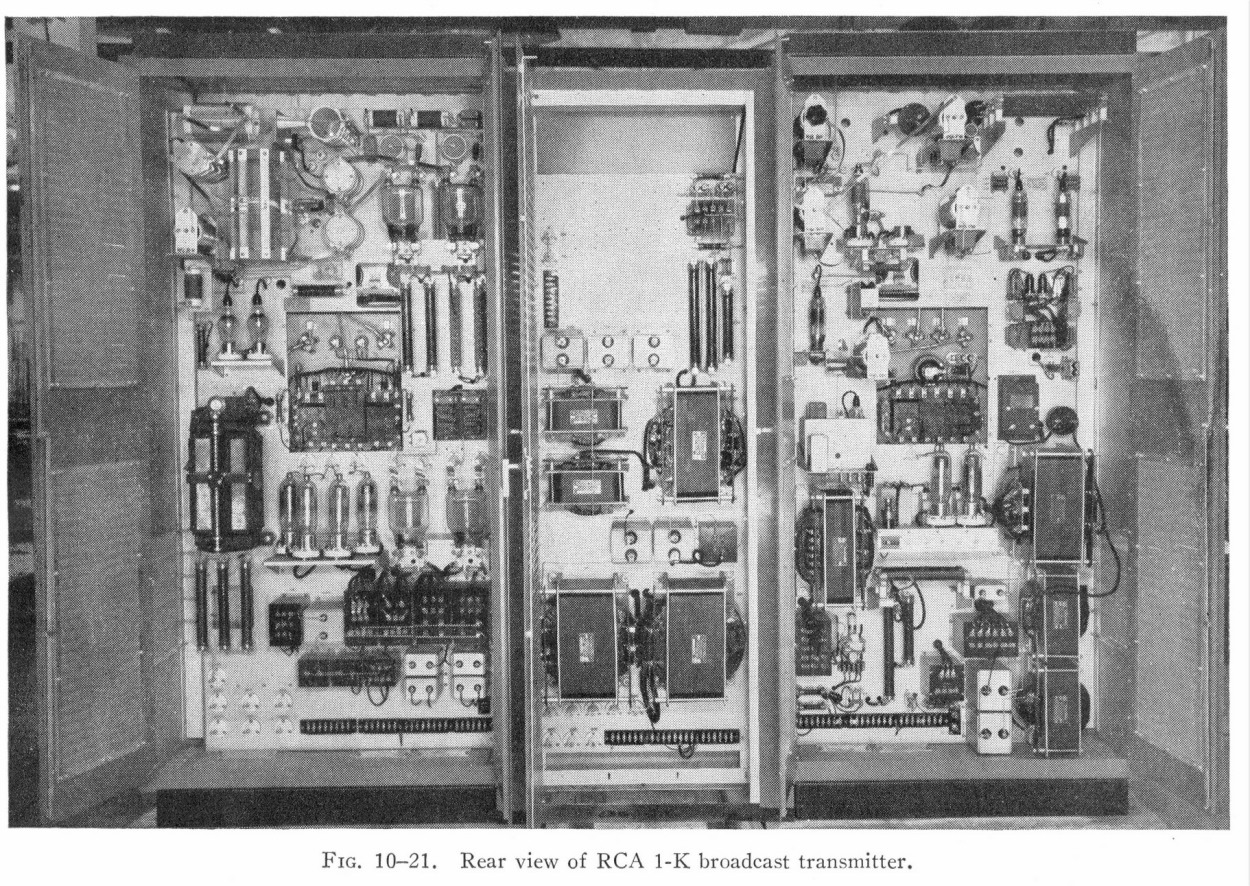

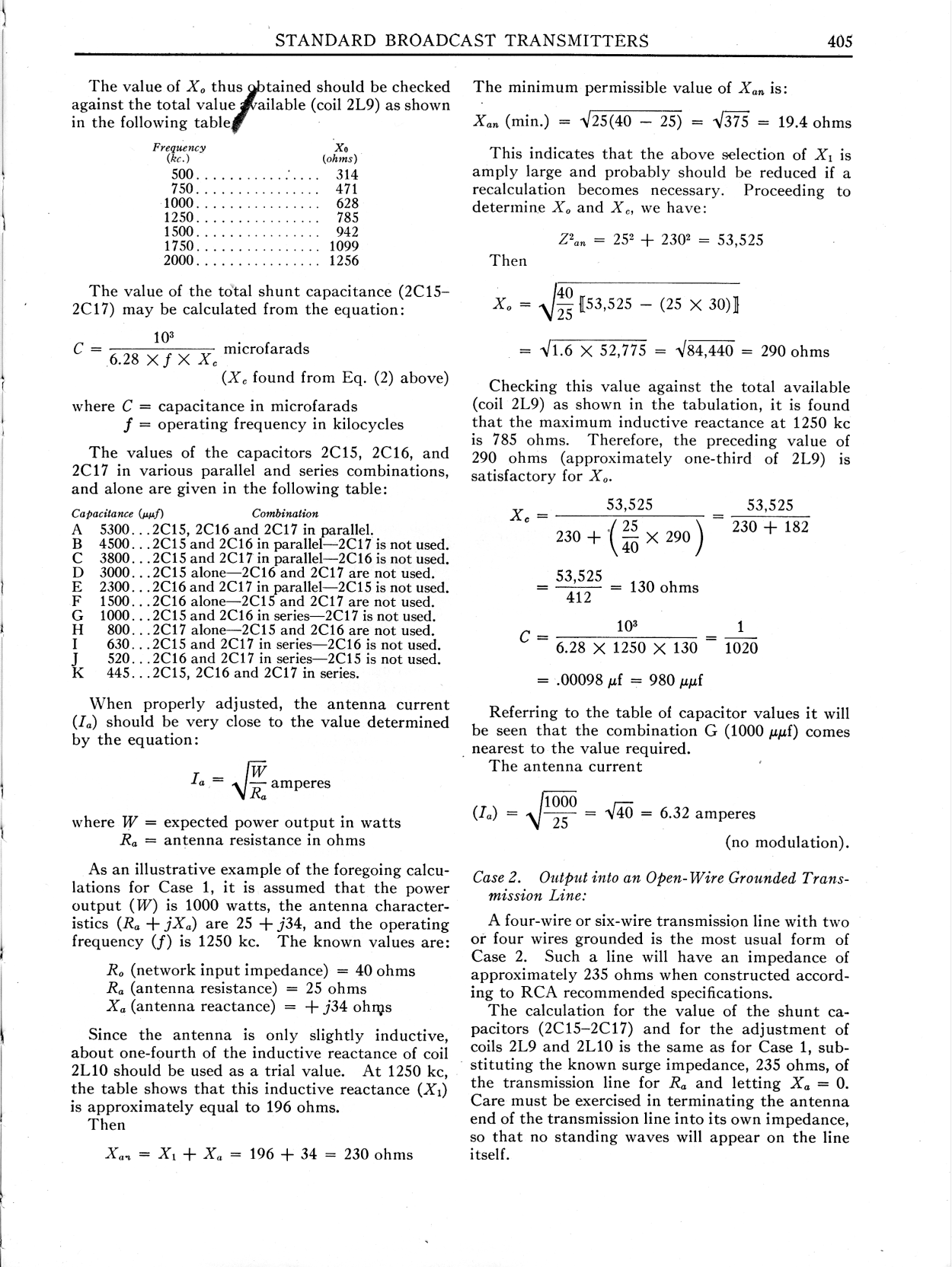

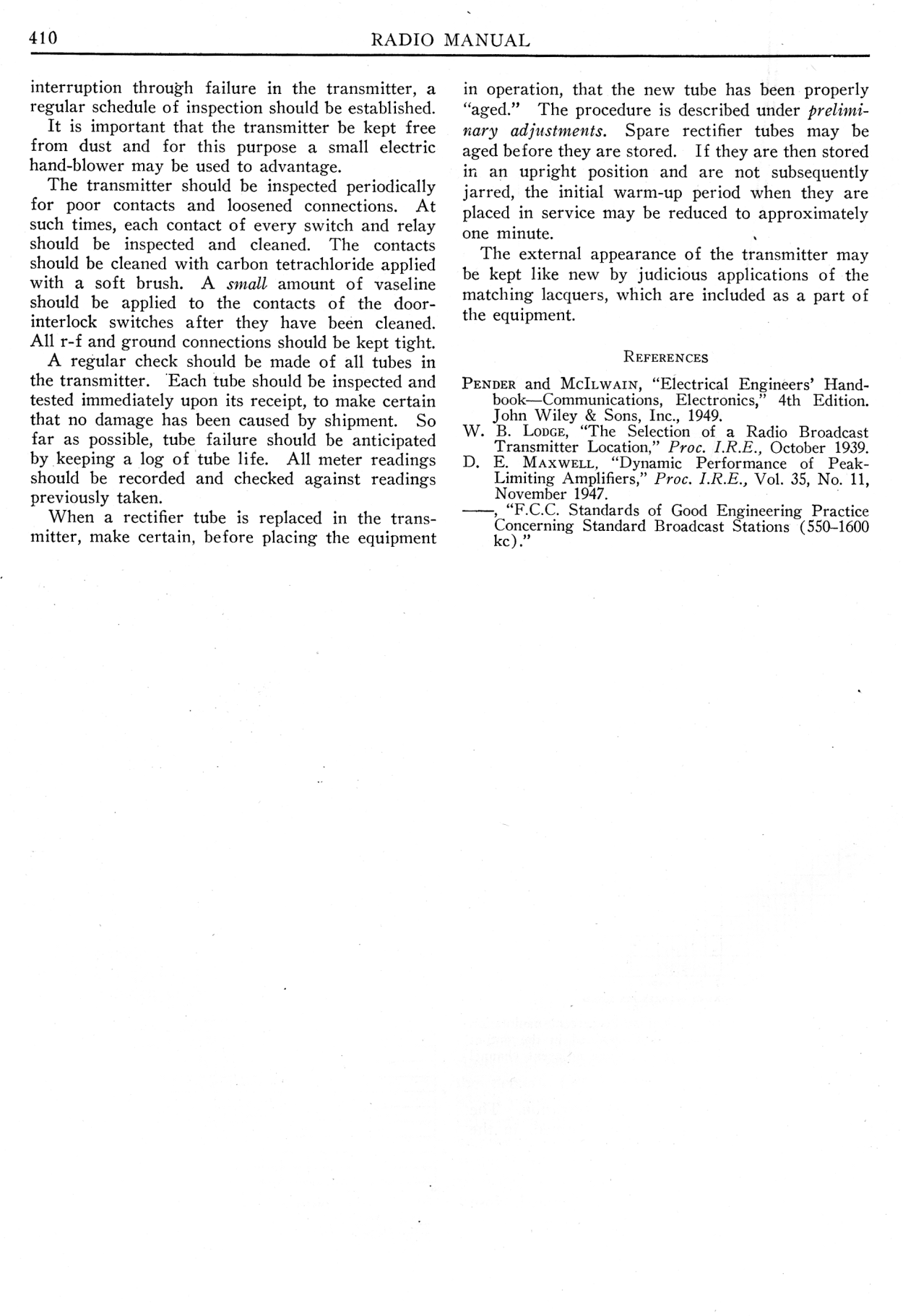

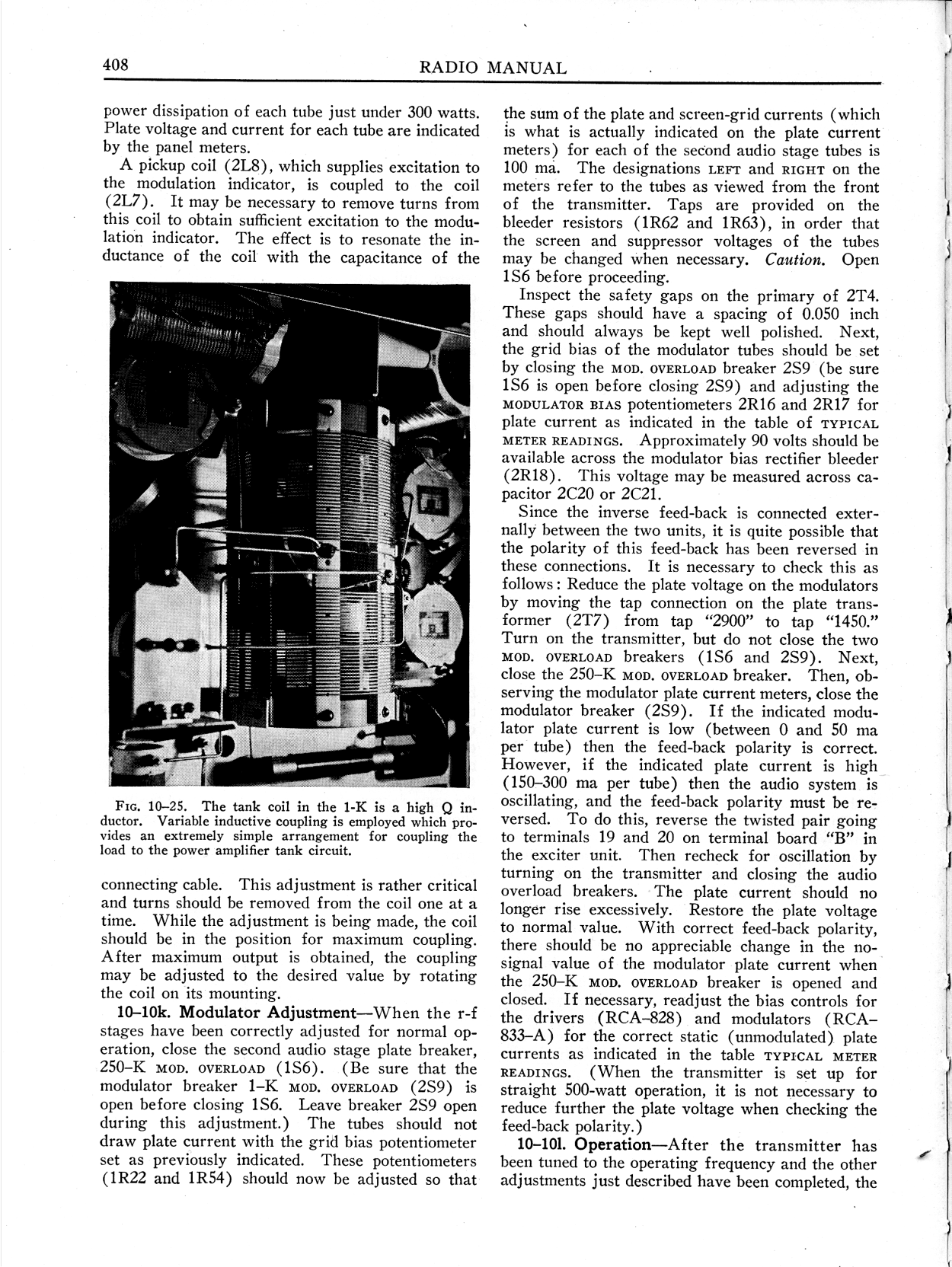

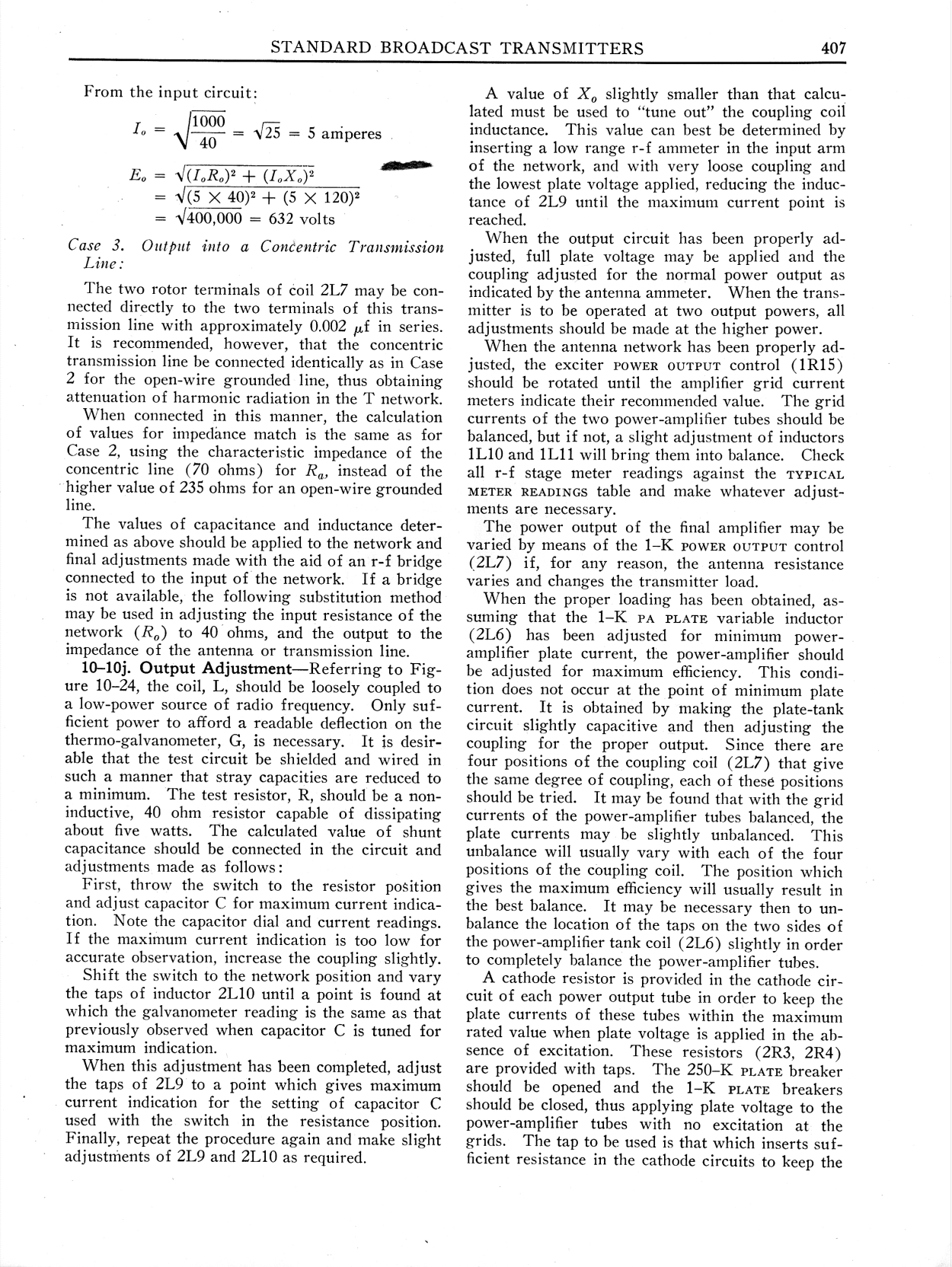

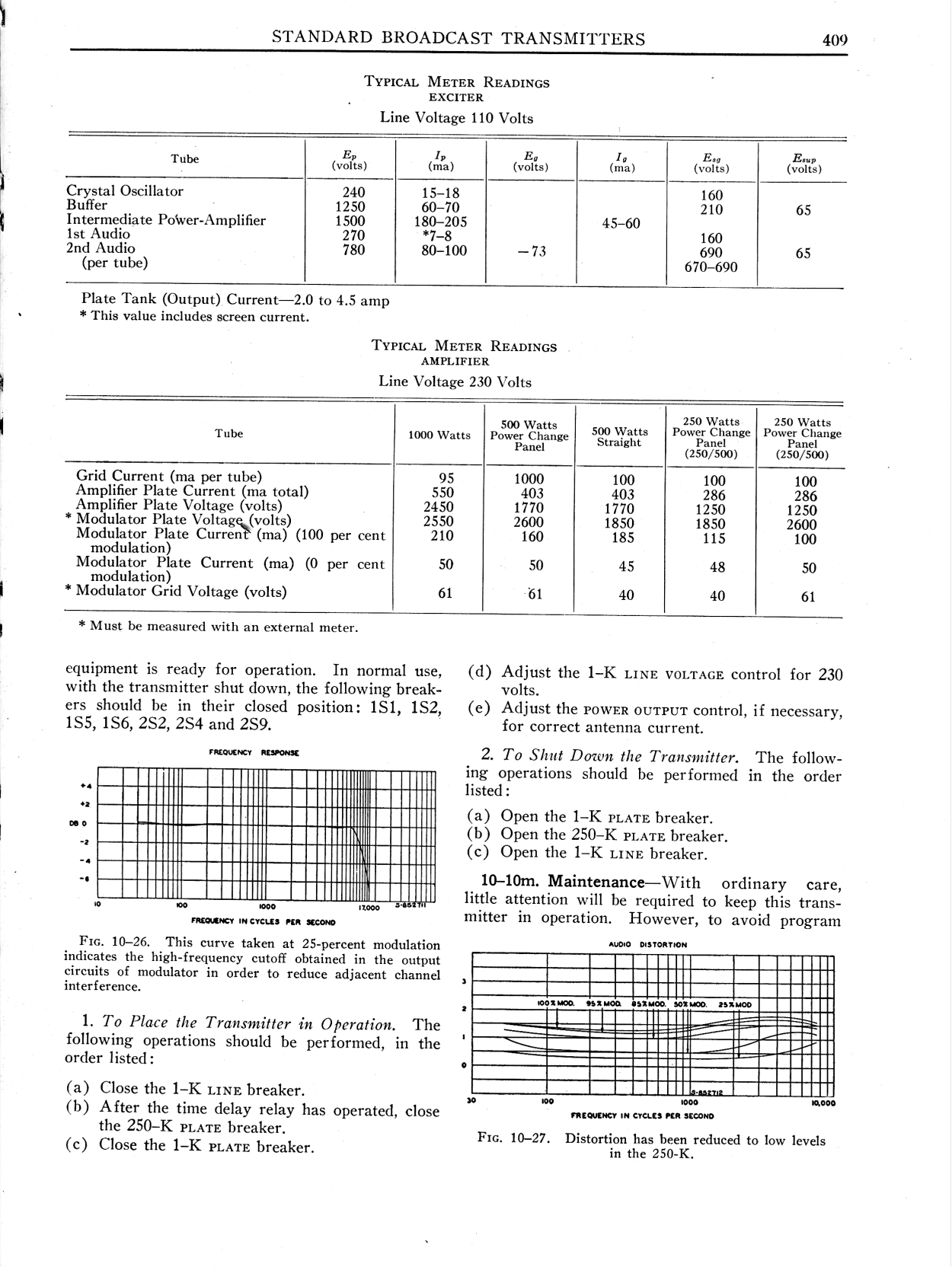

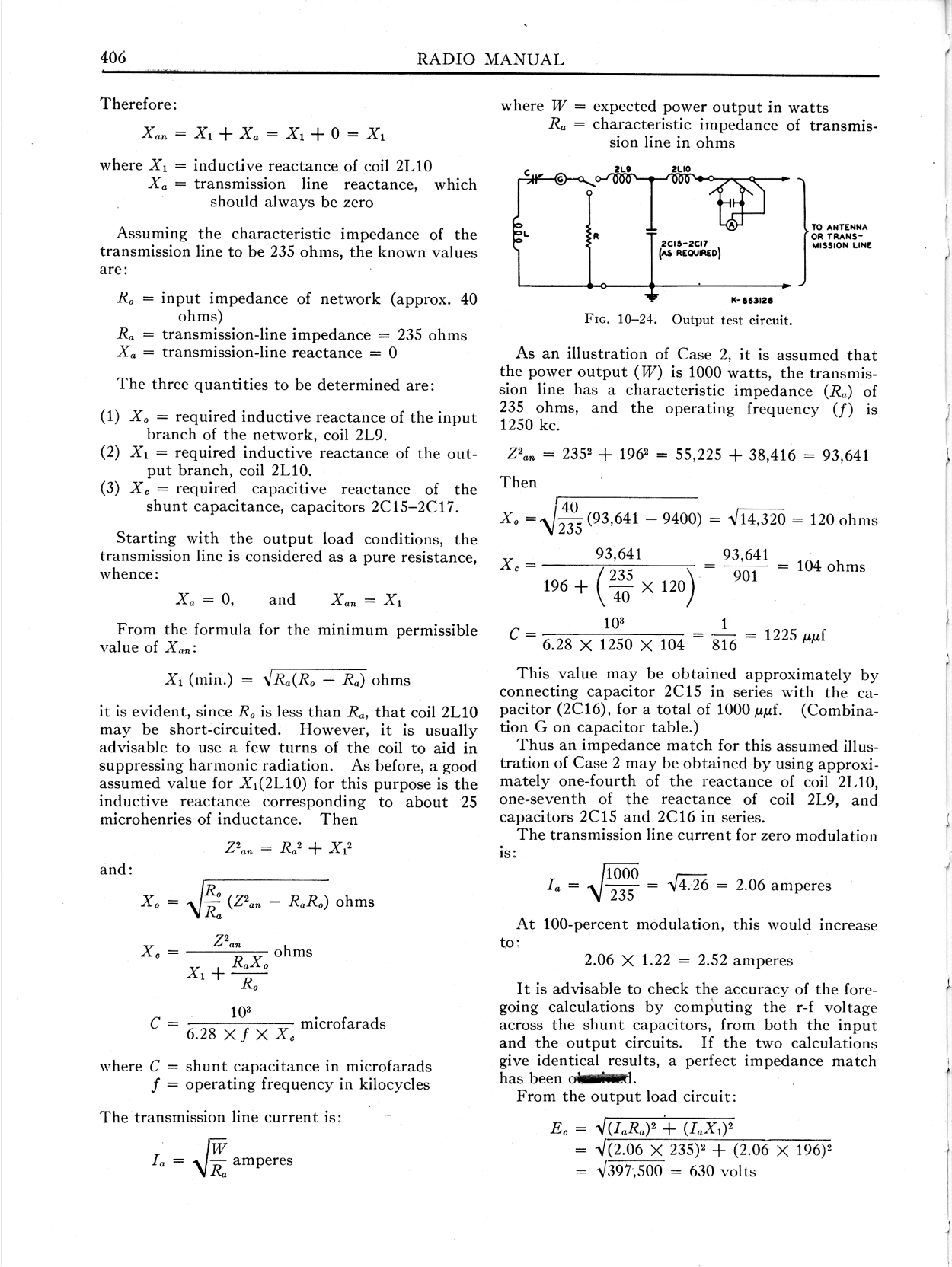

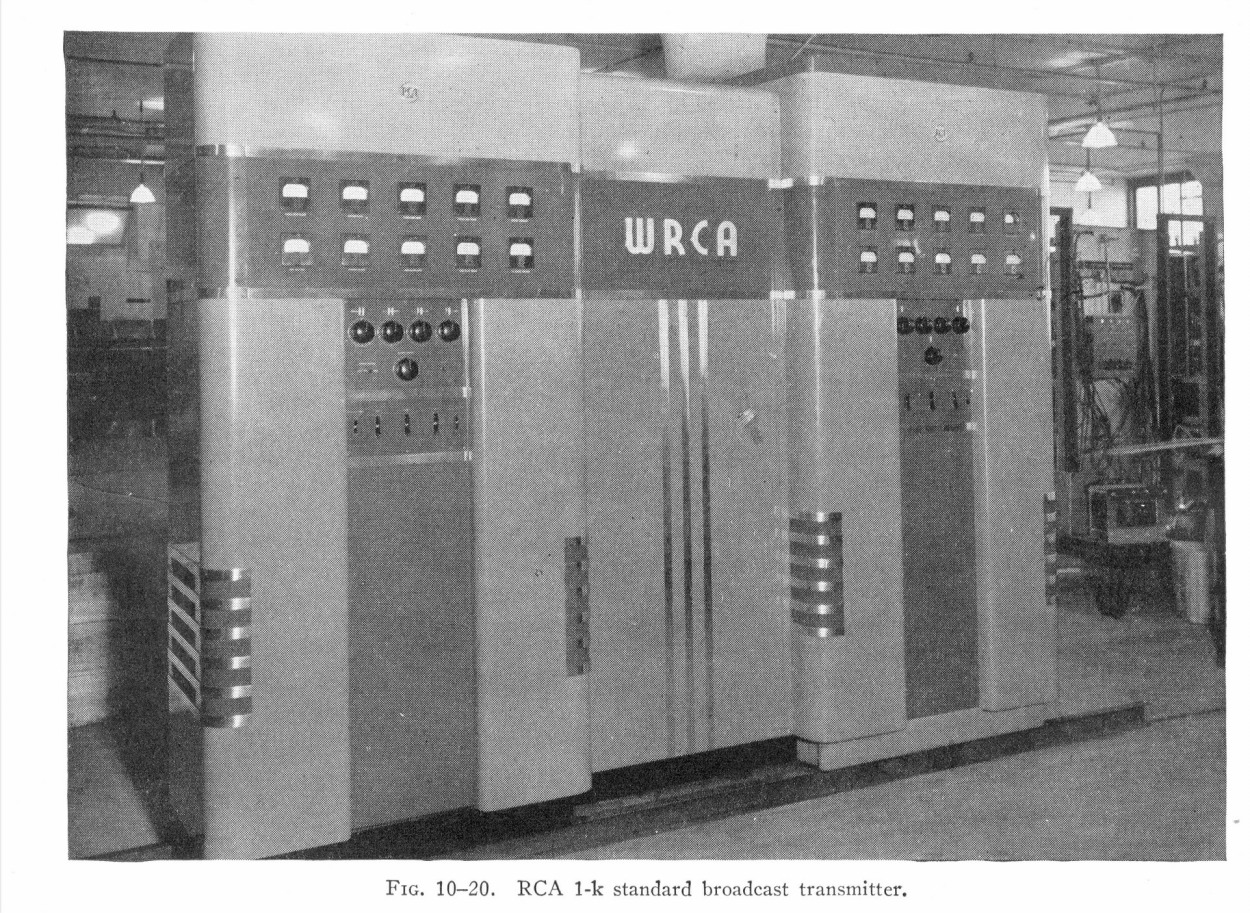

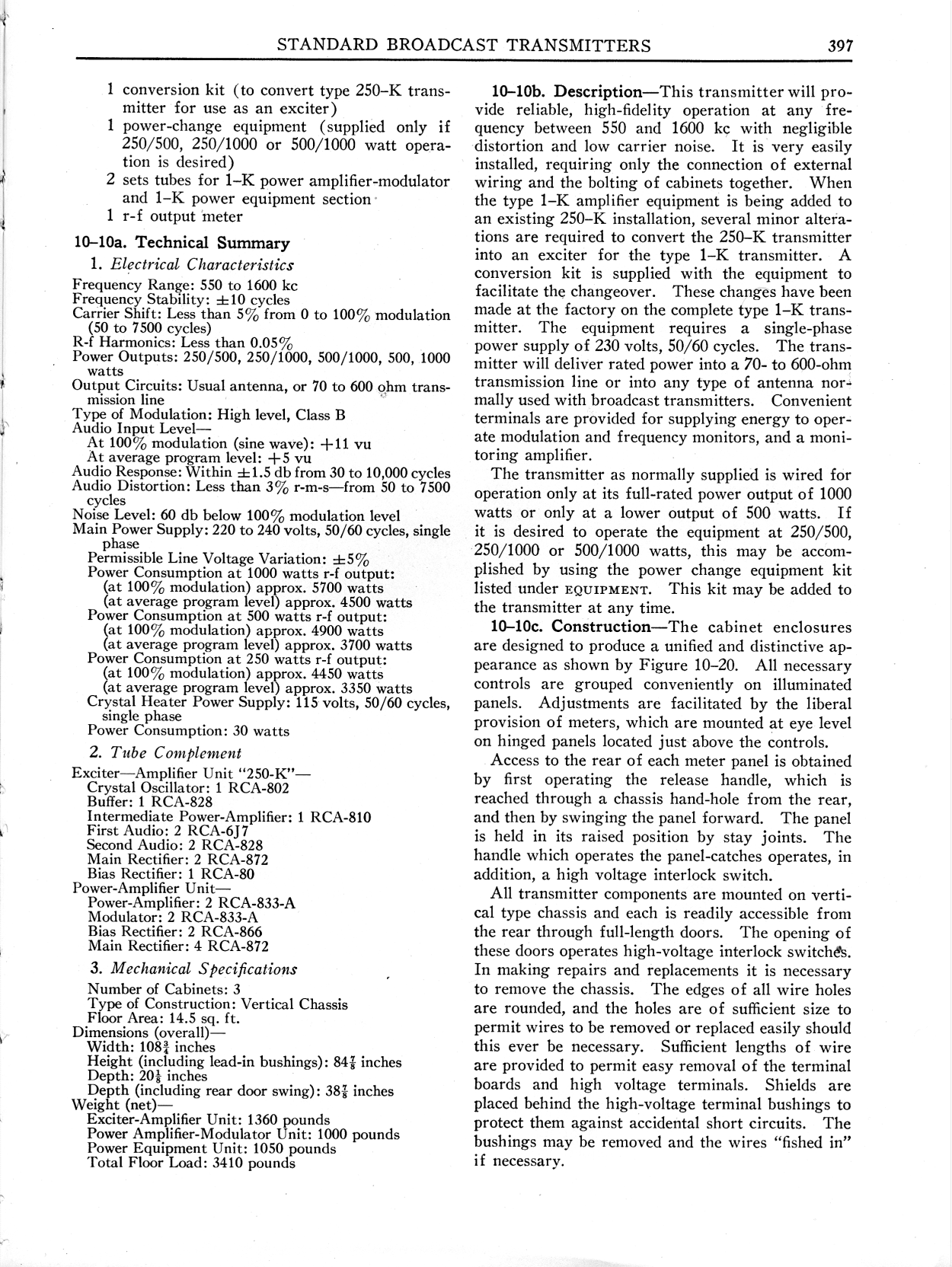

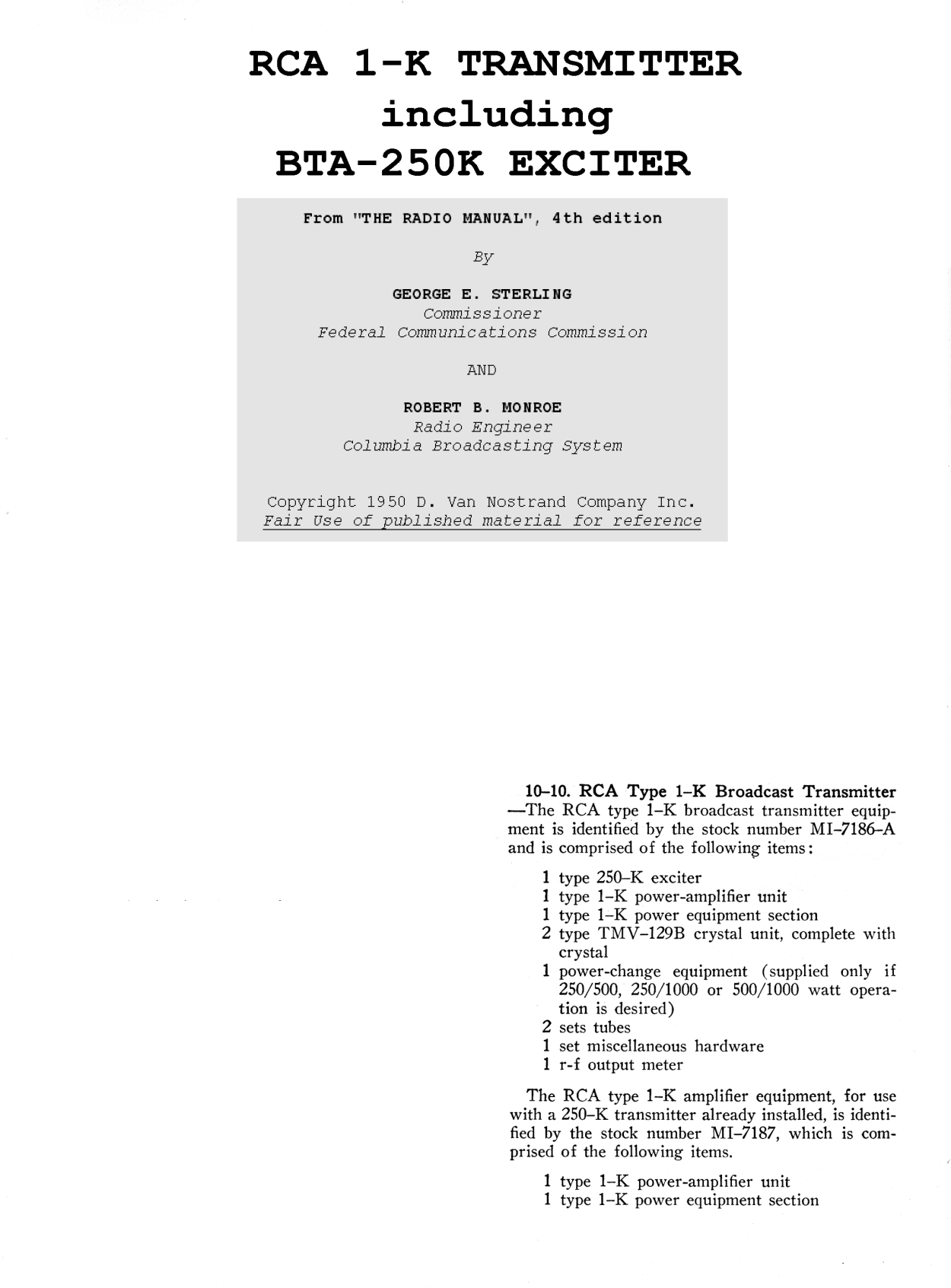

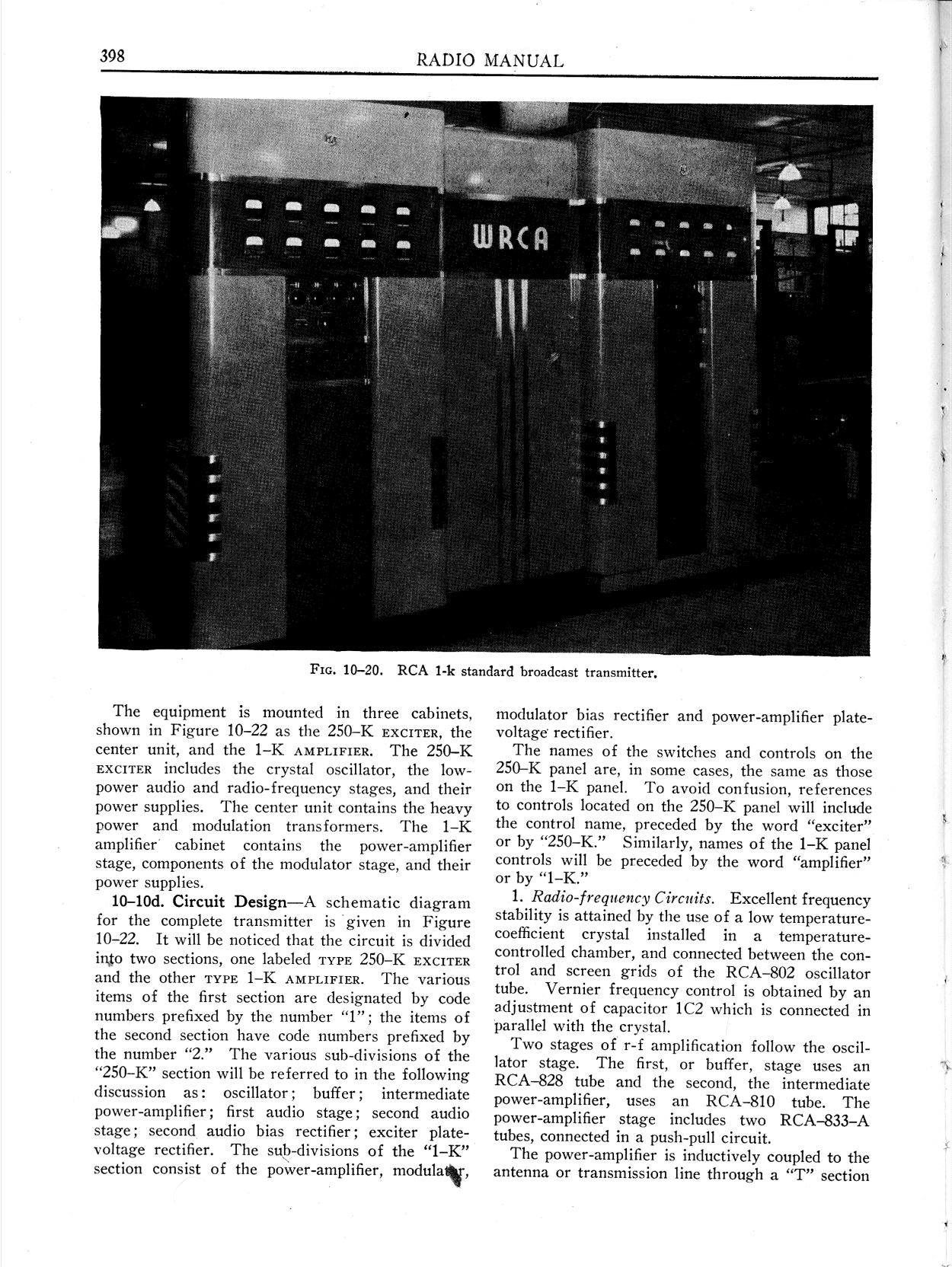

1.gif 2.gif 2a.jpg 3.gif

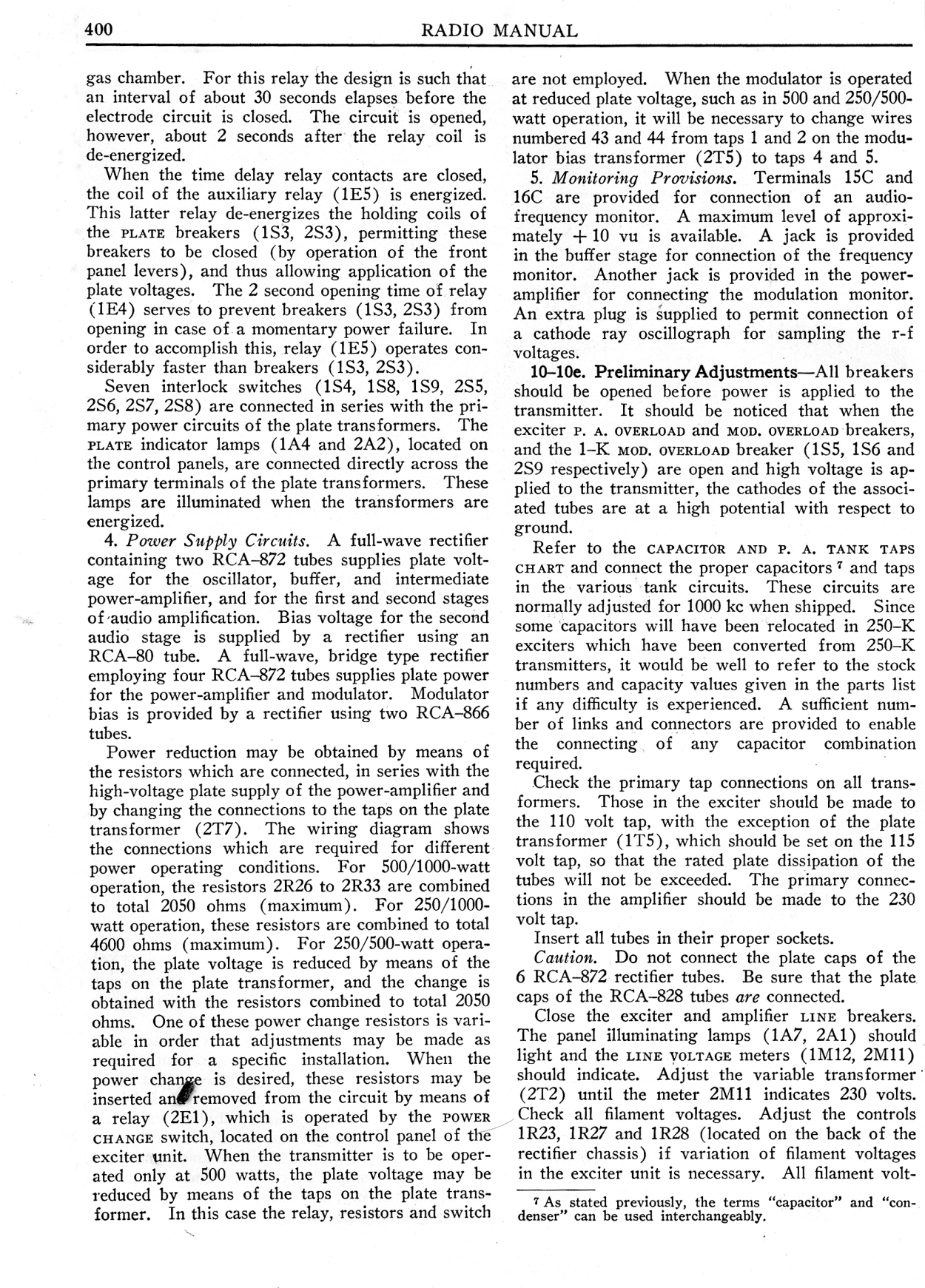

3a.jpg 4.gif 5.gif 6.gif

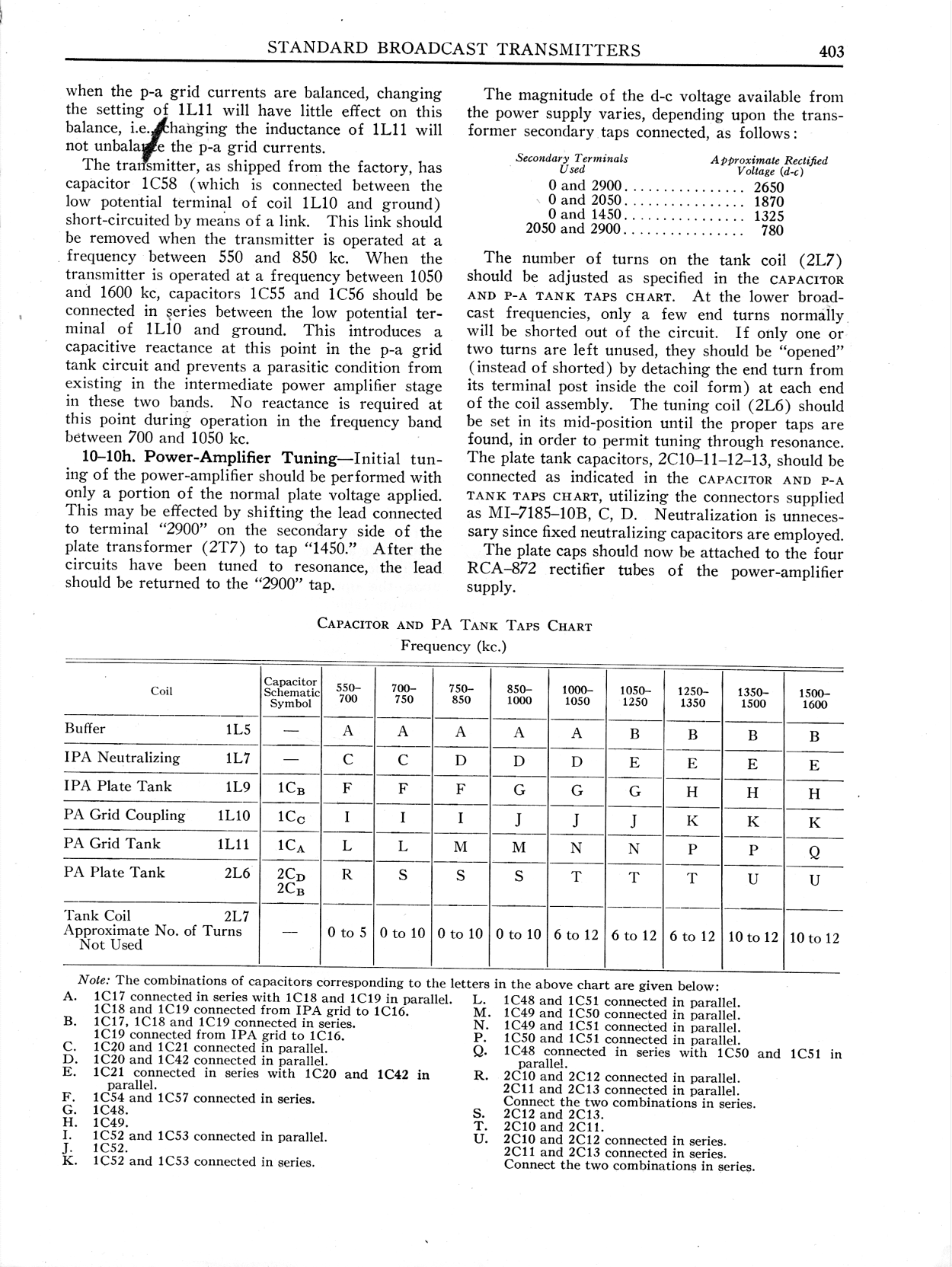

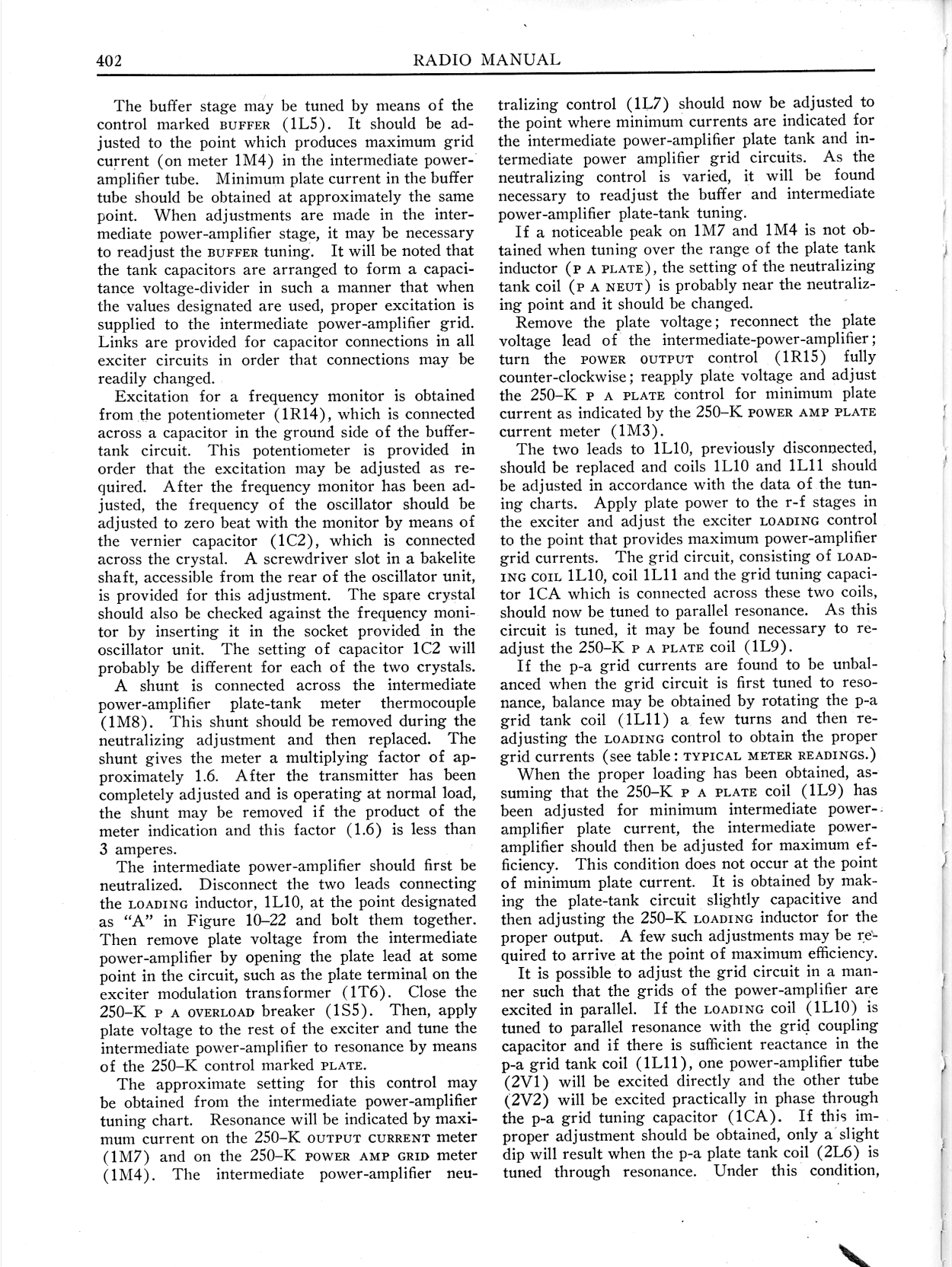

7.gif 8.gif 9.gif a.gif

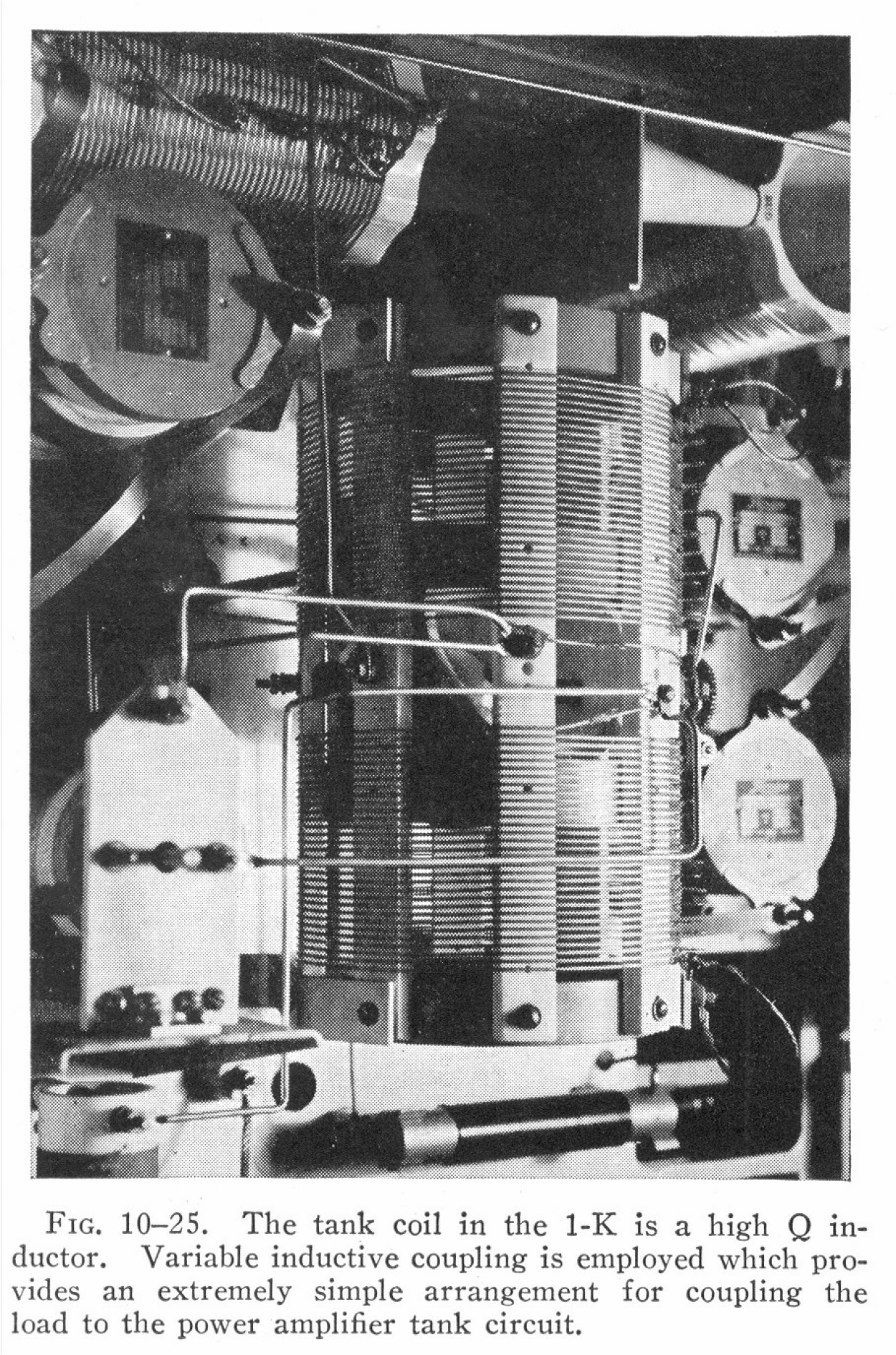

b.gif c.gif ca.jpg d.gif
e.gif f.gif RCA 1K Schematic
5700 pixels wide. Best to right-click and "save-as" if your browser won't display it.
