Westinghouse TSC Transmitter Internal Detail Images

October 2011

Home

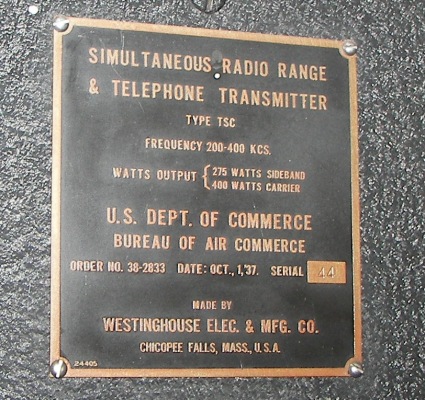

The Oregon Air and Space Museum has on display a Westinghouse TSC transmitter. This kind of low frequency transmitter was used as a navigation aid. It is really two transmitters in one, operating on different frequencies.

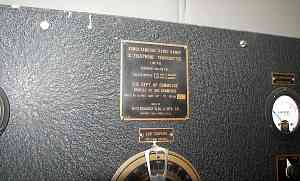

Here are highlighted primarily the interesting internal components of the transmitter. A partial front panel layout with close-up images is here. Most of this unit can be 'divined' by looking at it. Some notes are added where necessary.

100_9871a.jpg 100_9873.jpg 100_9874.jpg

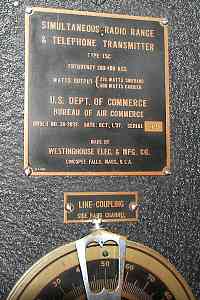

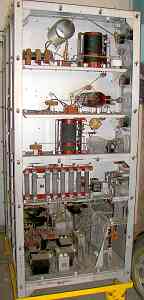

Left side view

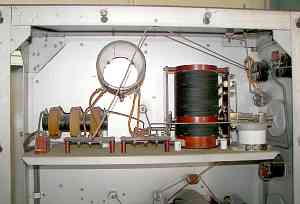

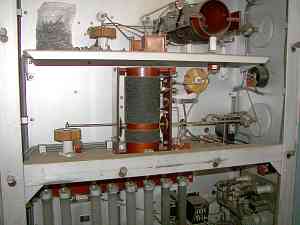

Top left compartment

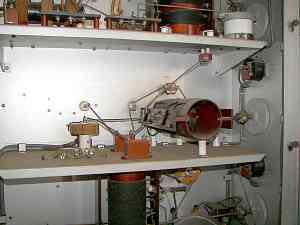

100_9876.jpg 100_9877.jpg 100_9878.jpg

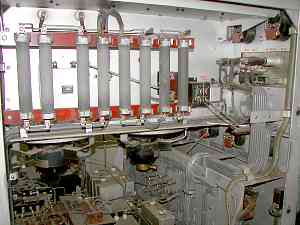

The bleeders and power reistors all seem to be here. The audio input is also in this section.
Left side

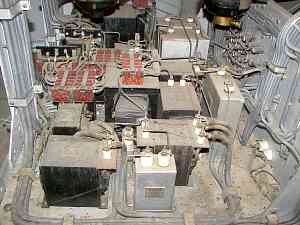

left side, bottom, where the passive power components live. The modulation transformer, reactor, and capacitor are closest to the viewer.
100_9880.jpg 100_9881.jpg

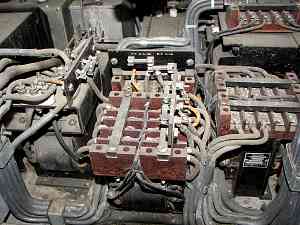

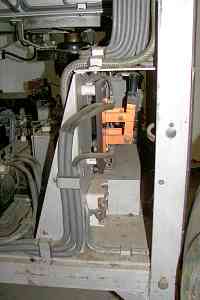

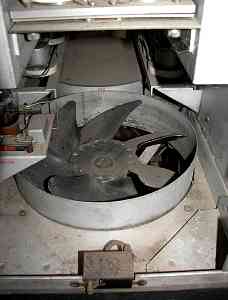

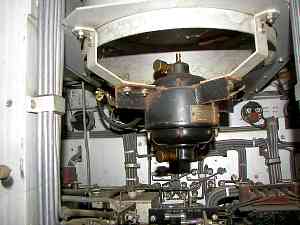

The reamost fan is apparently out of order. This needs repaired because above it are the MV rectifiers and several 805 tubes.
Rear center view of lower section.
Just behind the lower front panel on each side are knife switches.

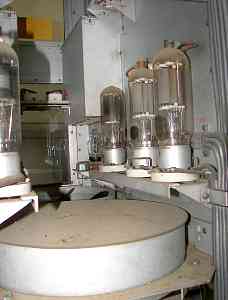

Rear view of ocillator, IPA, and 805 modulators. The blocked off fan is seen.

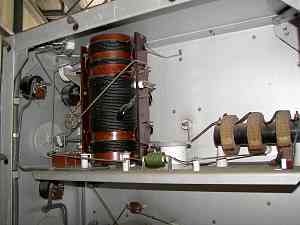

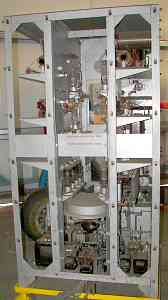

Rear view of unmodulated side of the transmitter.

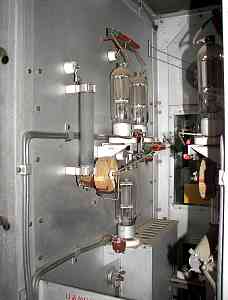

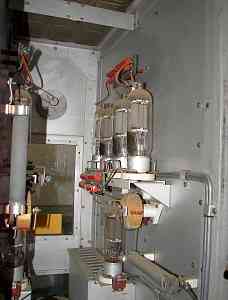

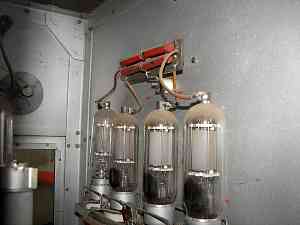

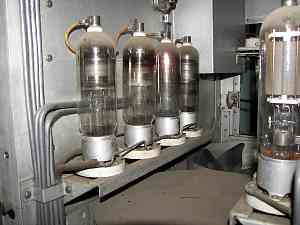

Look like 872's.

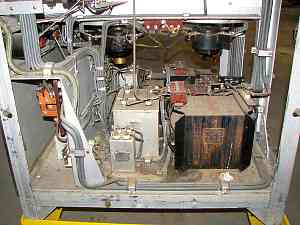

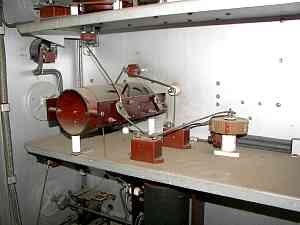

Top right compartment.

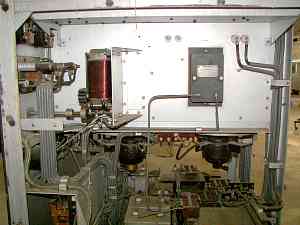

100_9888.jpg 100_9889.jpg 100_9890.jpg 100_9891.jpg

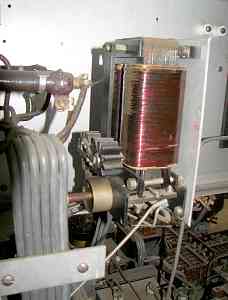

100_9892.jpg 100_9893.jpg

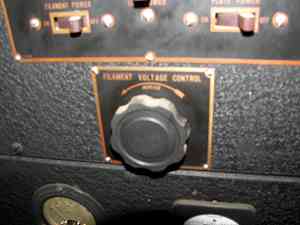

Filament adjustable transformer
Rear view

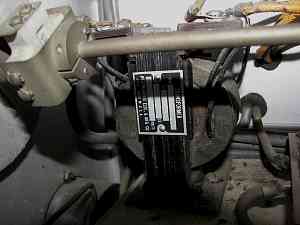

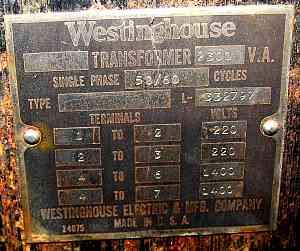

Plate transformer data.

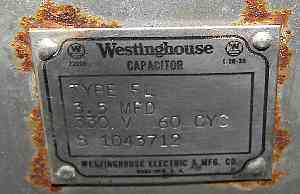

ferroresonant type capacitor arrangement on plate transformer
100_9900.jpg 100_9901.jpg

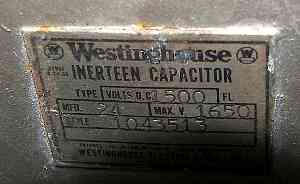

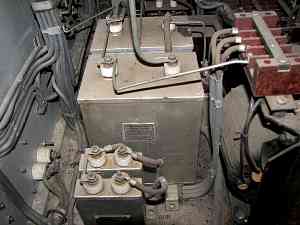

Main filters
100_9903.jpg 100_9904.jpg

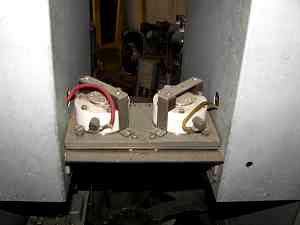

crystals

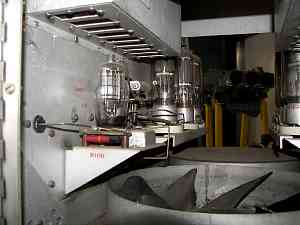

100_9905.jpg 100_9906.jpg

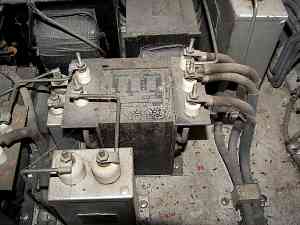

Modulation transformer and coupling capacitor.

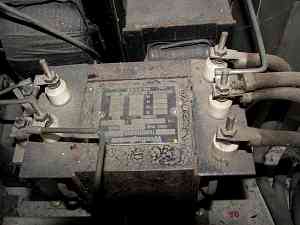

Modulation transformer
Modulation transformer

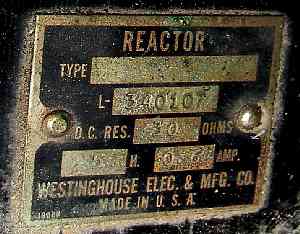

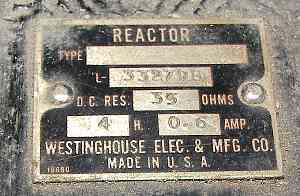

Modulation reactor (interesting low value, but for voice..

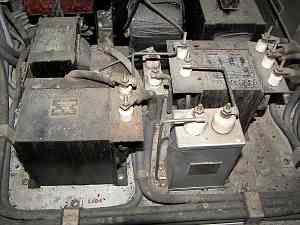

Mod. trans, cap, and choke..

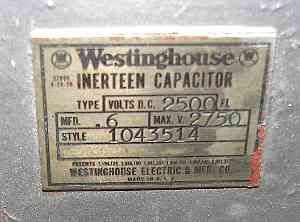

modulation coupling capacitor
filter choke nameplate

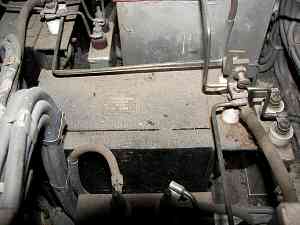

filter choke and parallel capacitor -note spark gap.

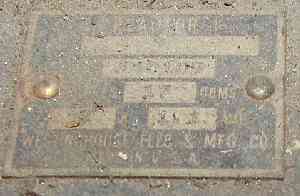

filter ch. data plate, not easy to read. 17 ohms, 2H, 1.1A.

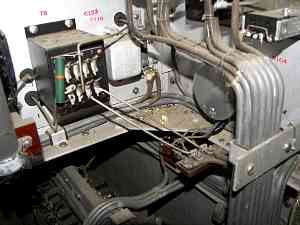

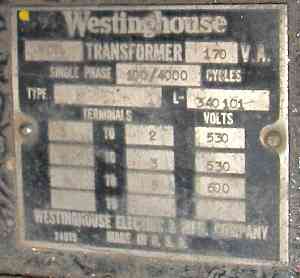

small transformer, 12.6V
audio input transformer

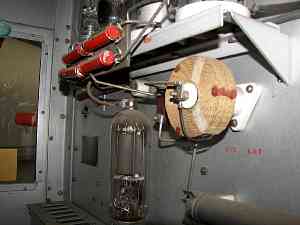

modulated stage

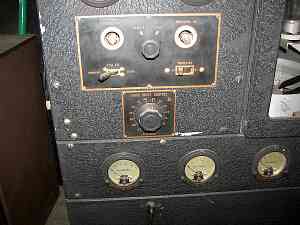

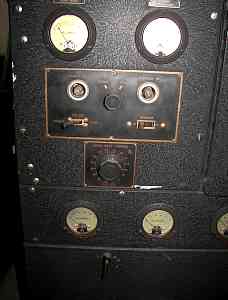

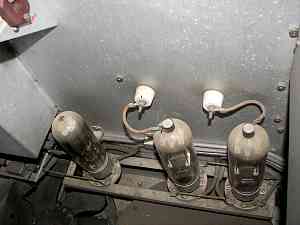

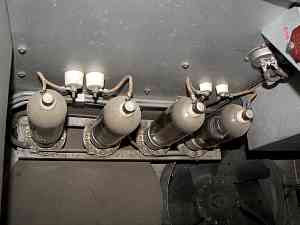

100_9929.jpg 100_9930.jpg 100_9931.jpg 100_9932.jpg

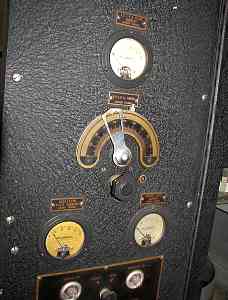

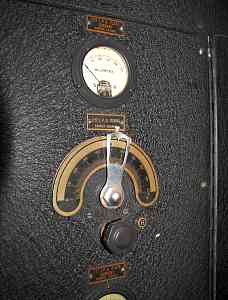

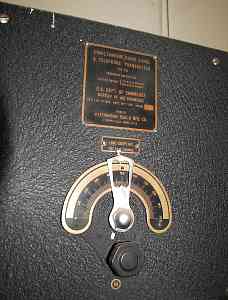

100_9933.jpg 100_9934.jpg 100_9935.jpg 100_9936.jpg

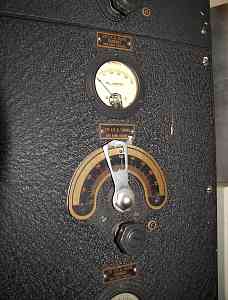

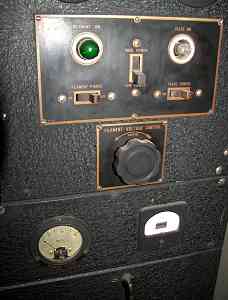

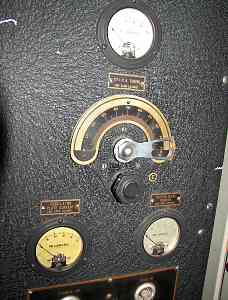

100_9937.jpg 100_9938.jpg 100_9939.jpg 100_9940.jpg

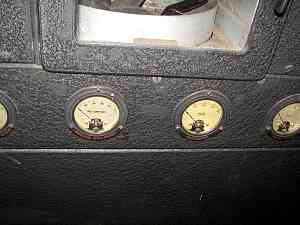

100_9941.jpg 100_9942.jpg 100_9943.jpg 100_9946.jpg
some art to work with?
