Scale Drawings - What started this whole thing..

Others have put an M109 body on an M818 chassis.. Looks Good! To scope it out I studied them and did some scale drawings by taking images from the manuals and literally scaling them. Using MS Paint, it was easy to then cut and paste and draw while keeping the scale to 5 pixels per inch.

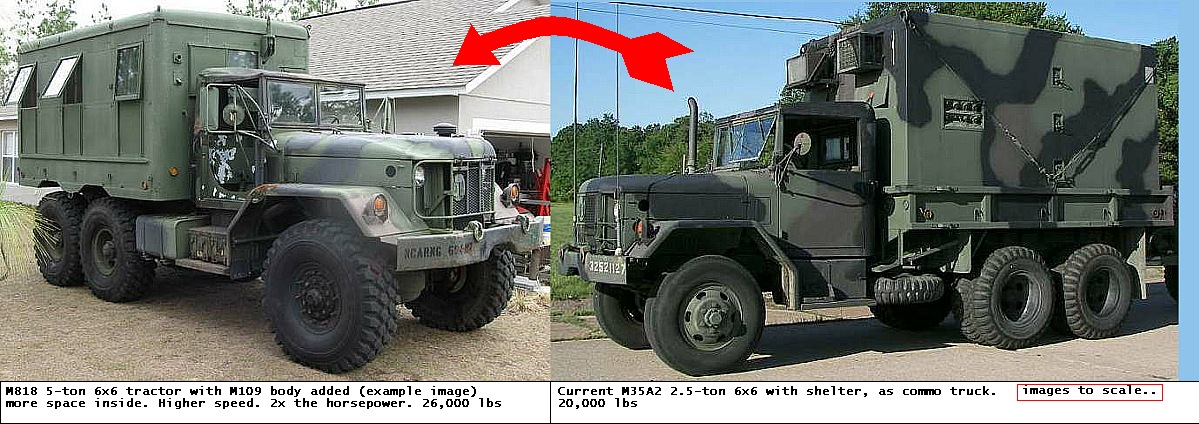

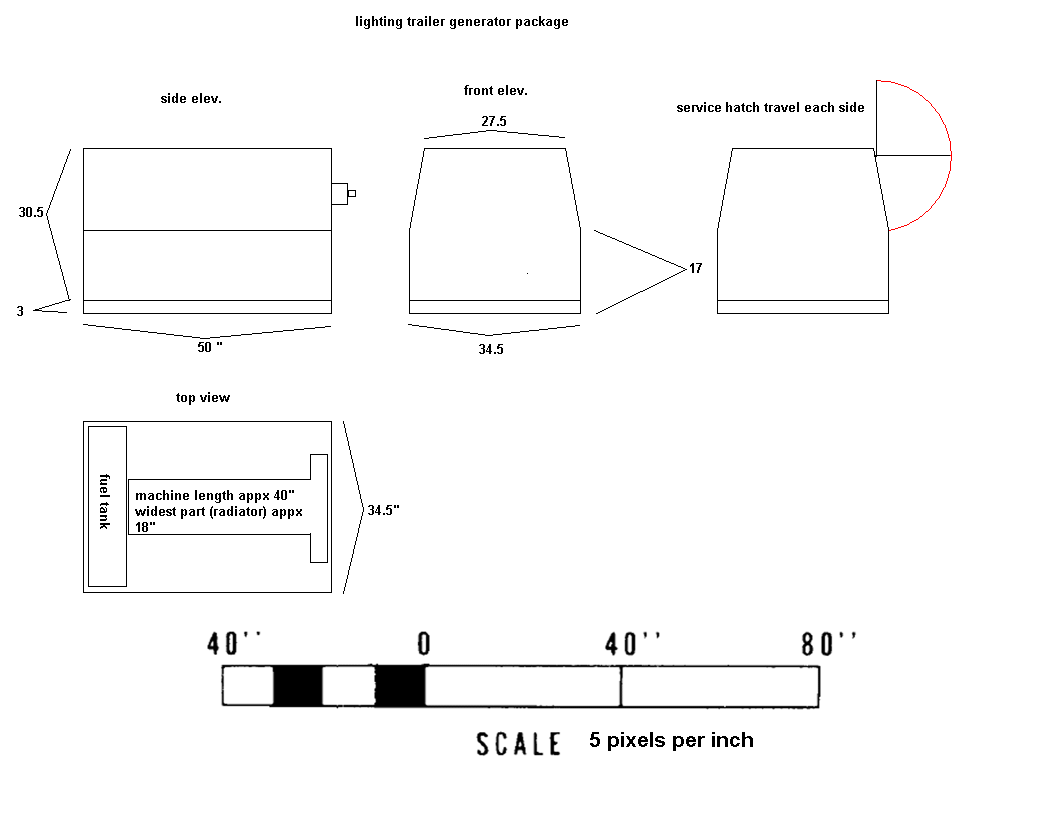

compare2.jpg concept.jpg genset trailer mechaism.gif img_0618.jpg img_0619.jpg

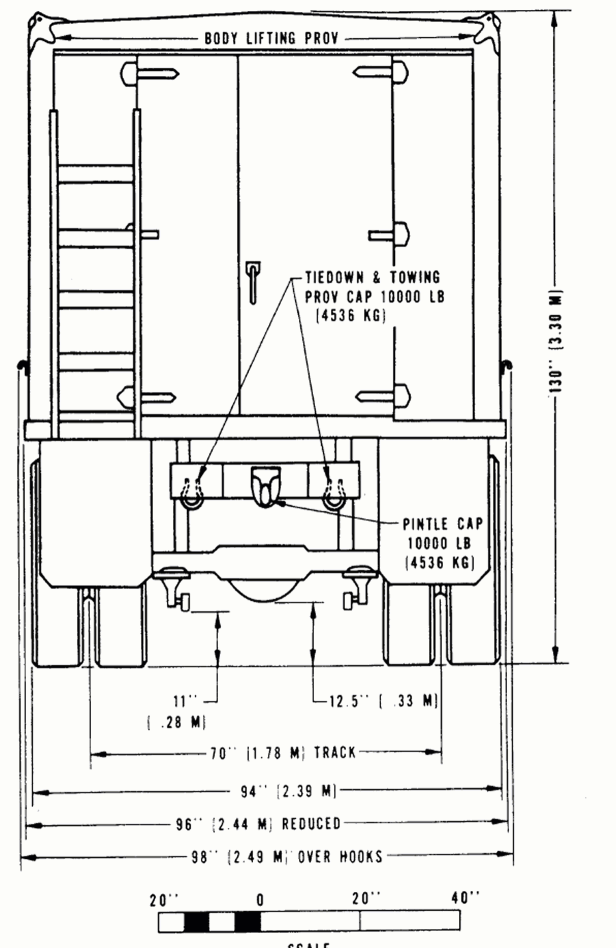

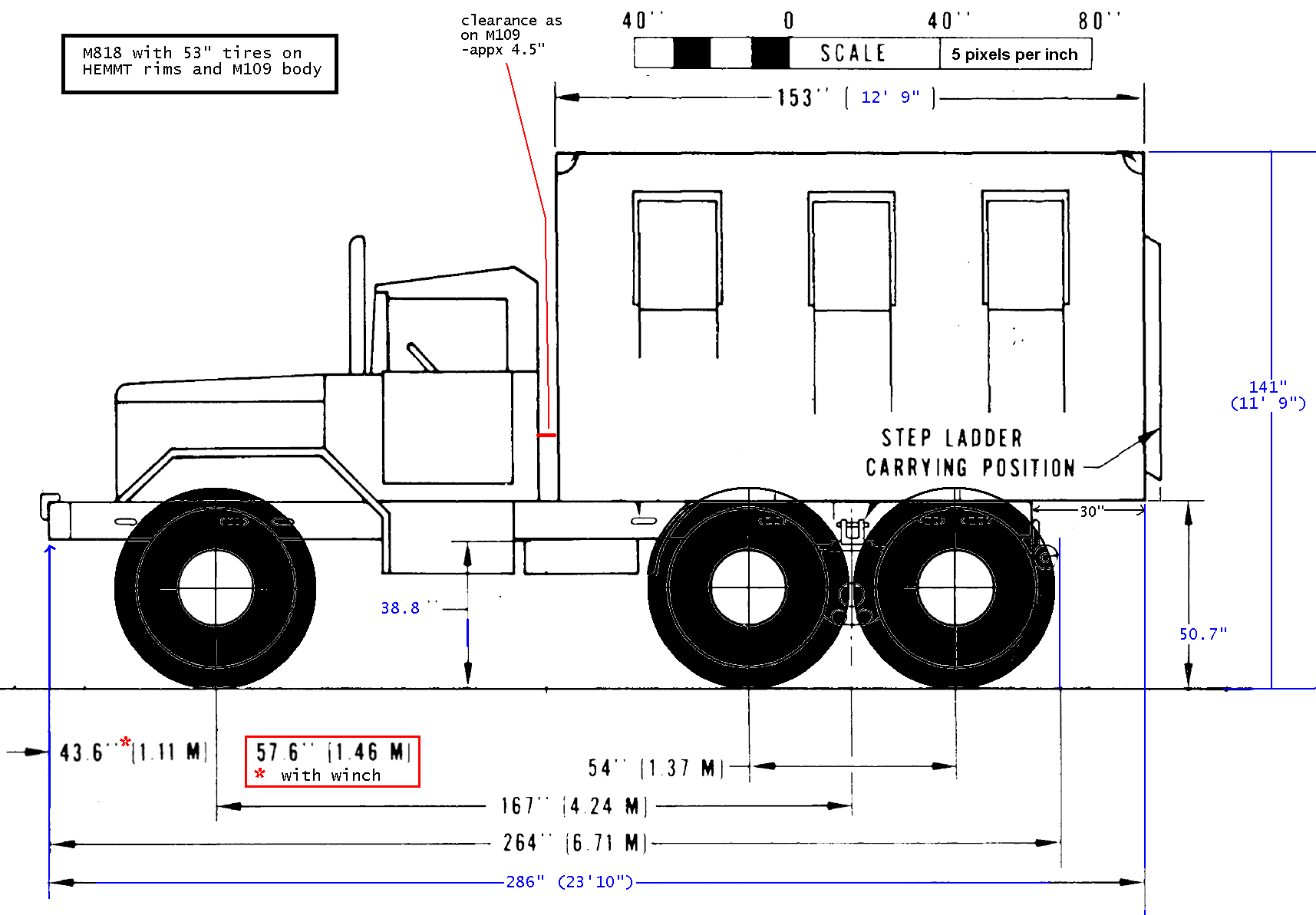

img_0620.jpg m109 rear drawing.gif m109 side drawing.gif m818 only.gif m818 with 109 box and 53inch wheels instead of 1100x20.gif

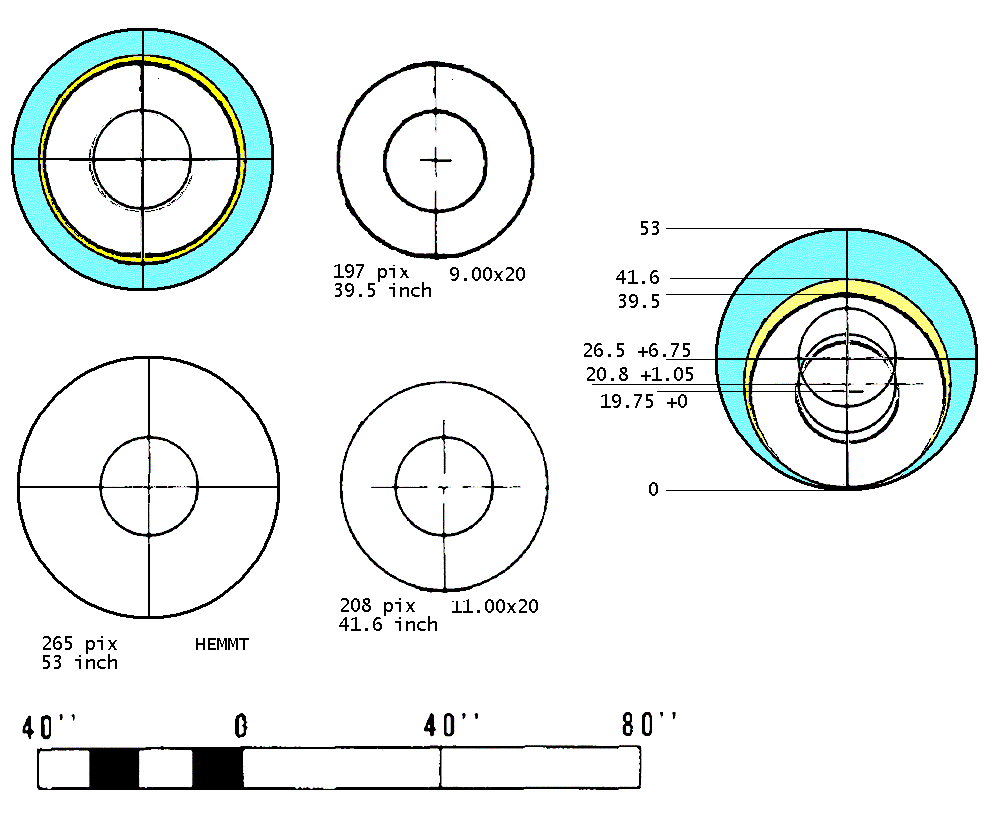

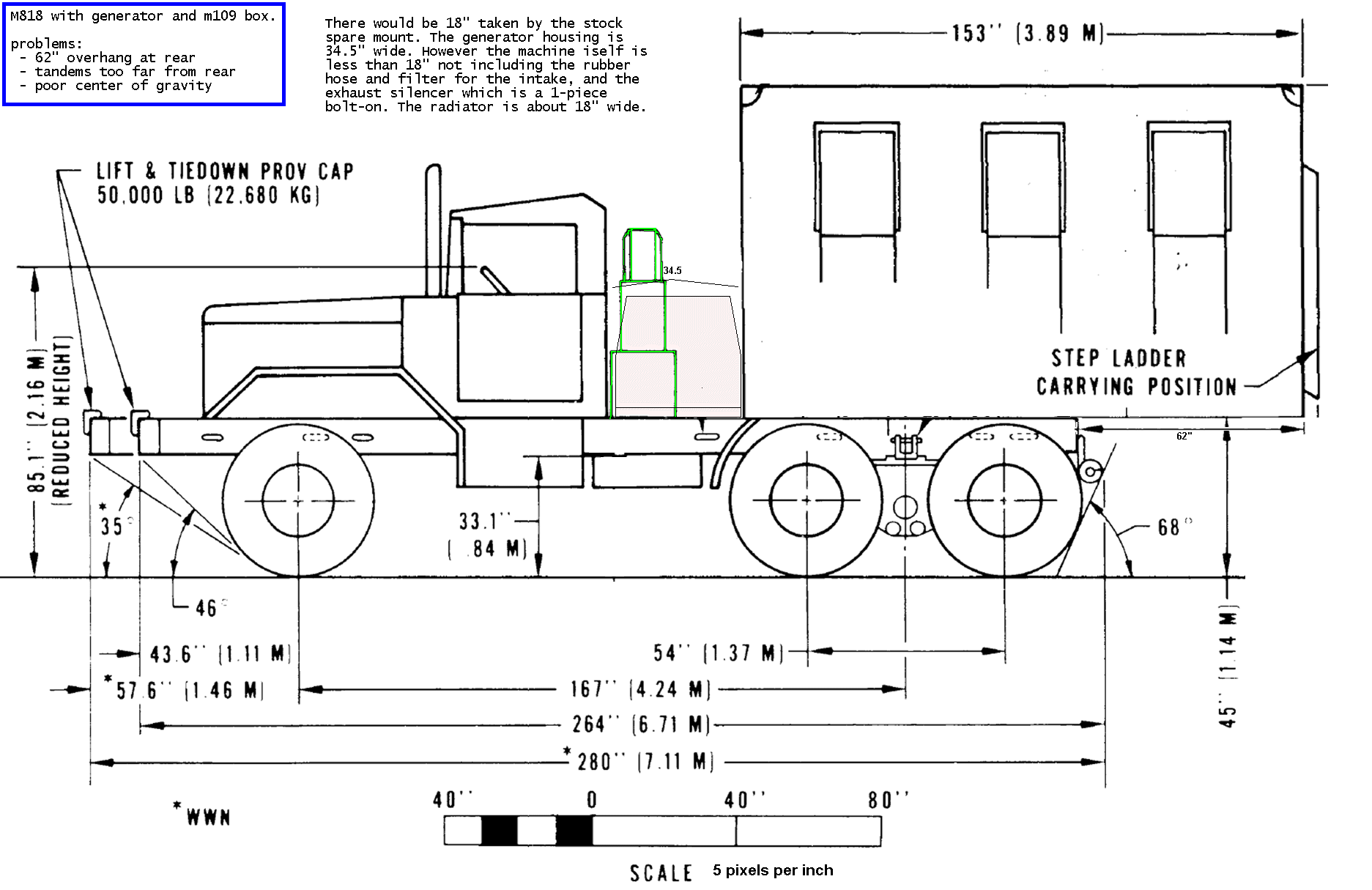

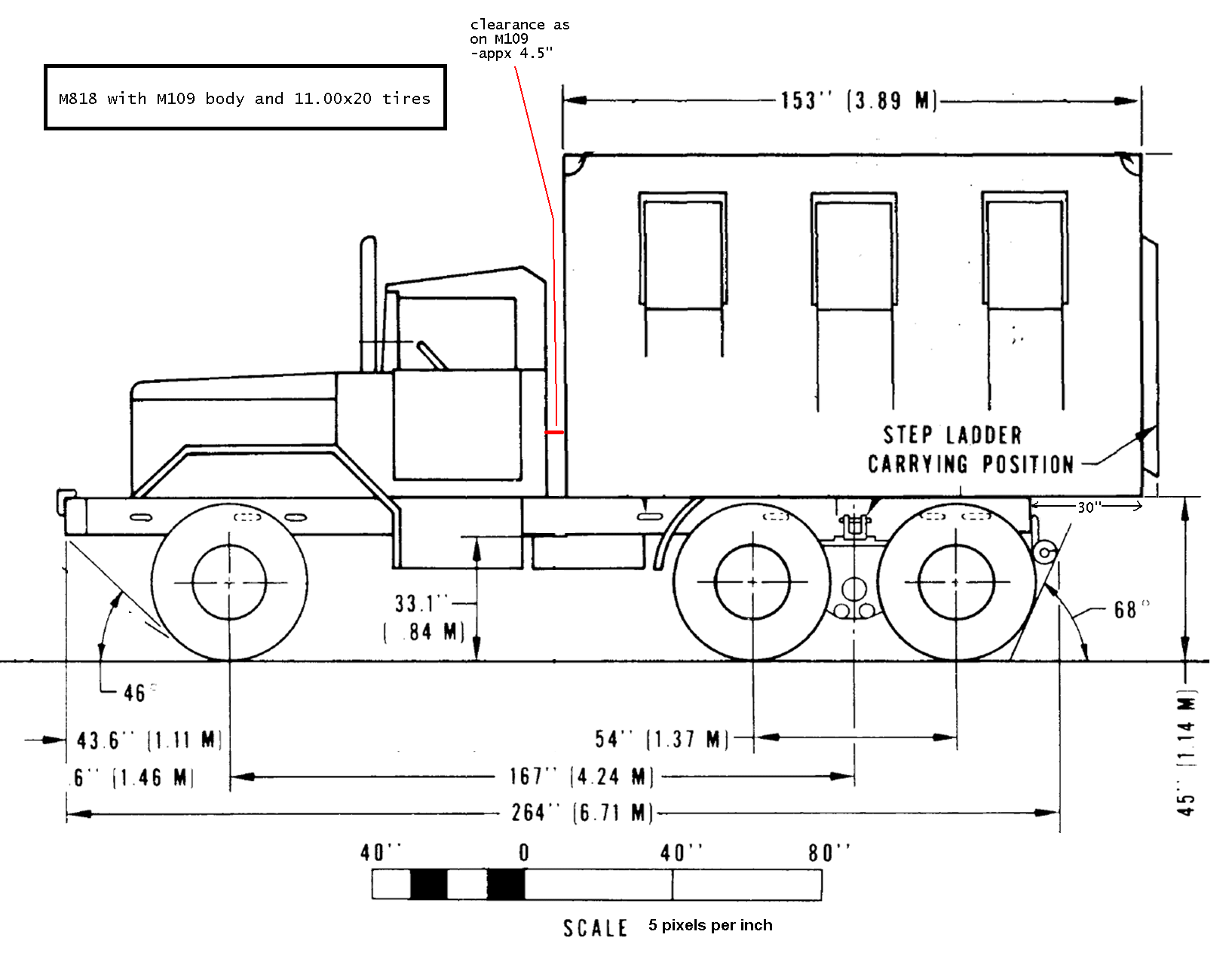

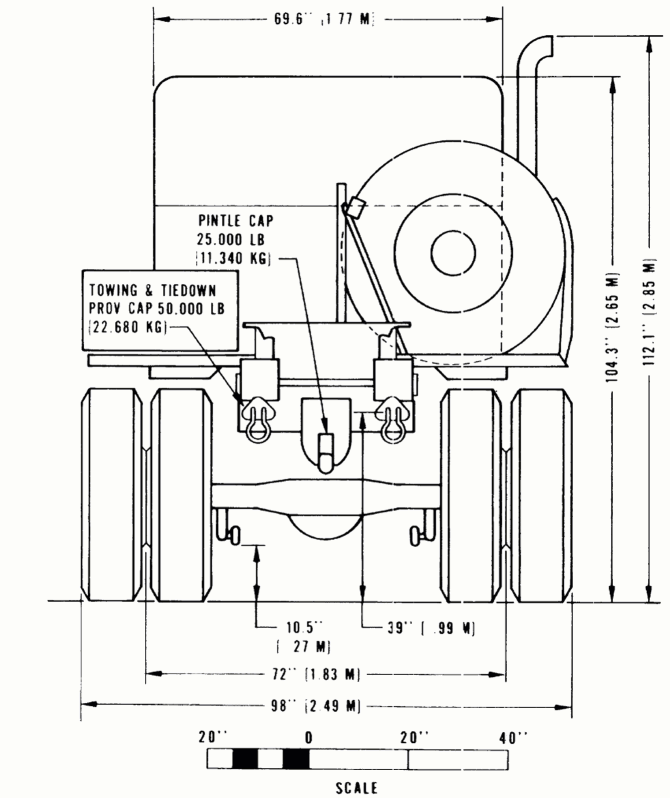

m818 with 109 box only.gif m818 with genset and 109 box side view.gif m8i8 rear view.gif wheel sizes.gif
