Radio Frequency Amplifier (22dB HF RX amplifier) AM-4213/FLR-9(V)

Courtesy W1EOF

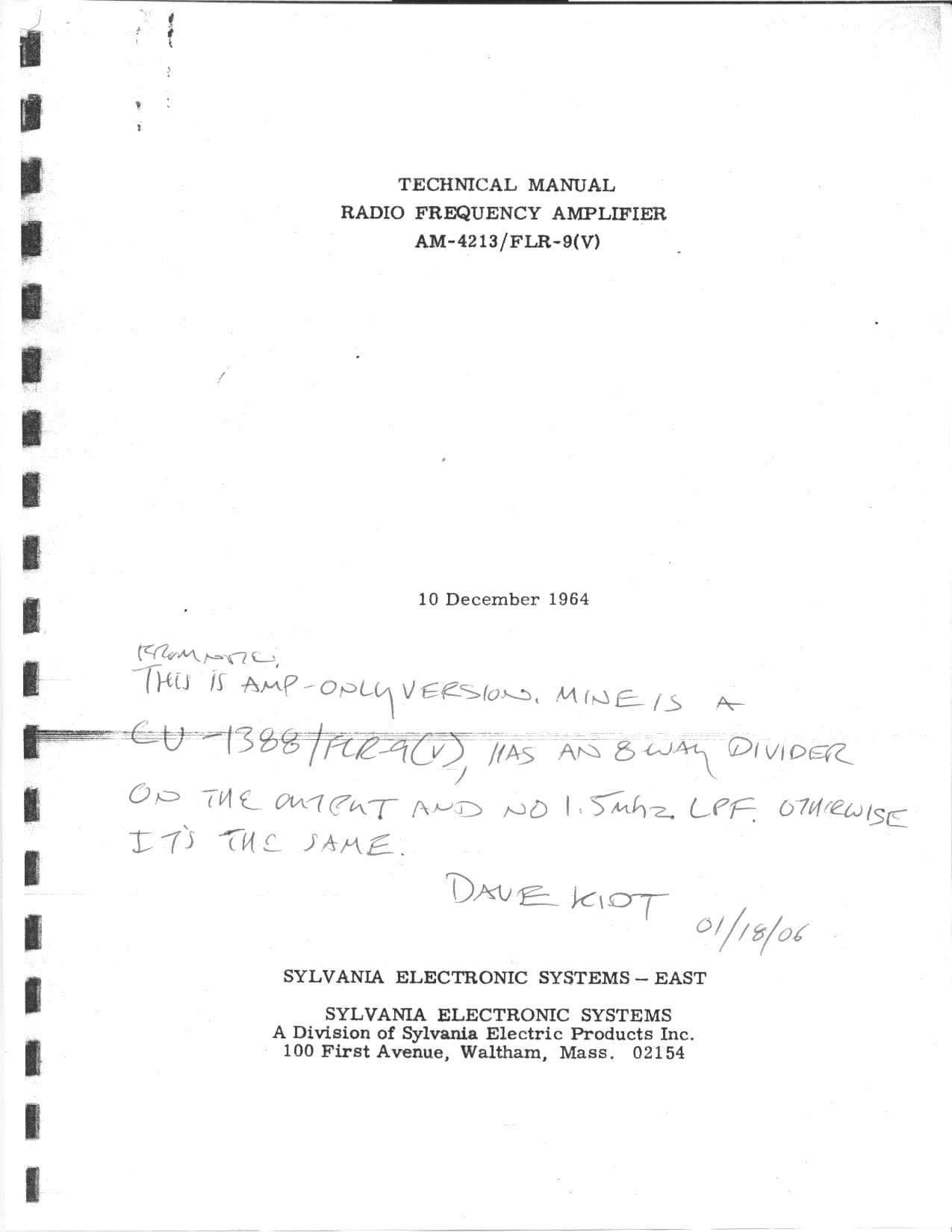

4-0

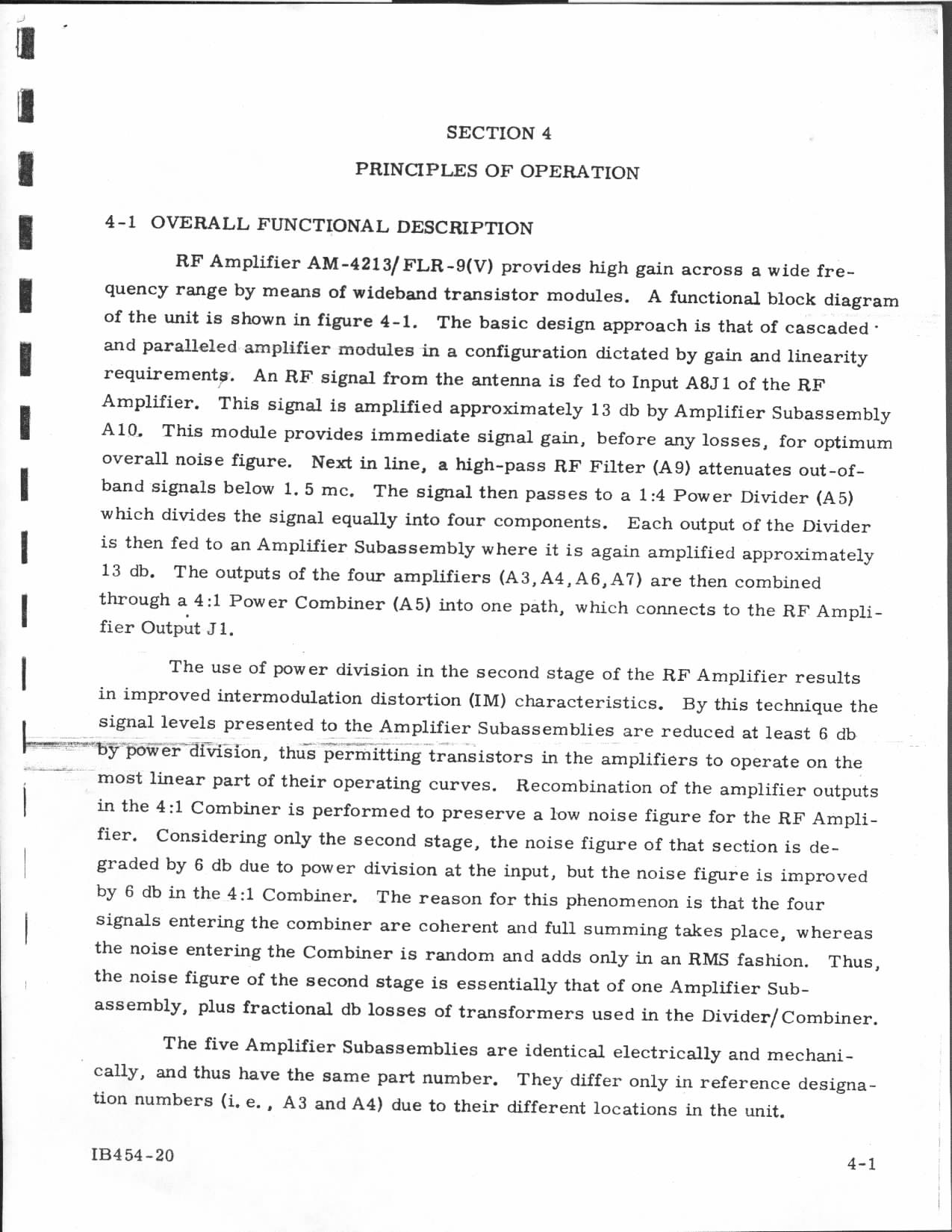

4-1
4-2

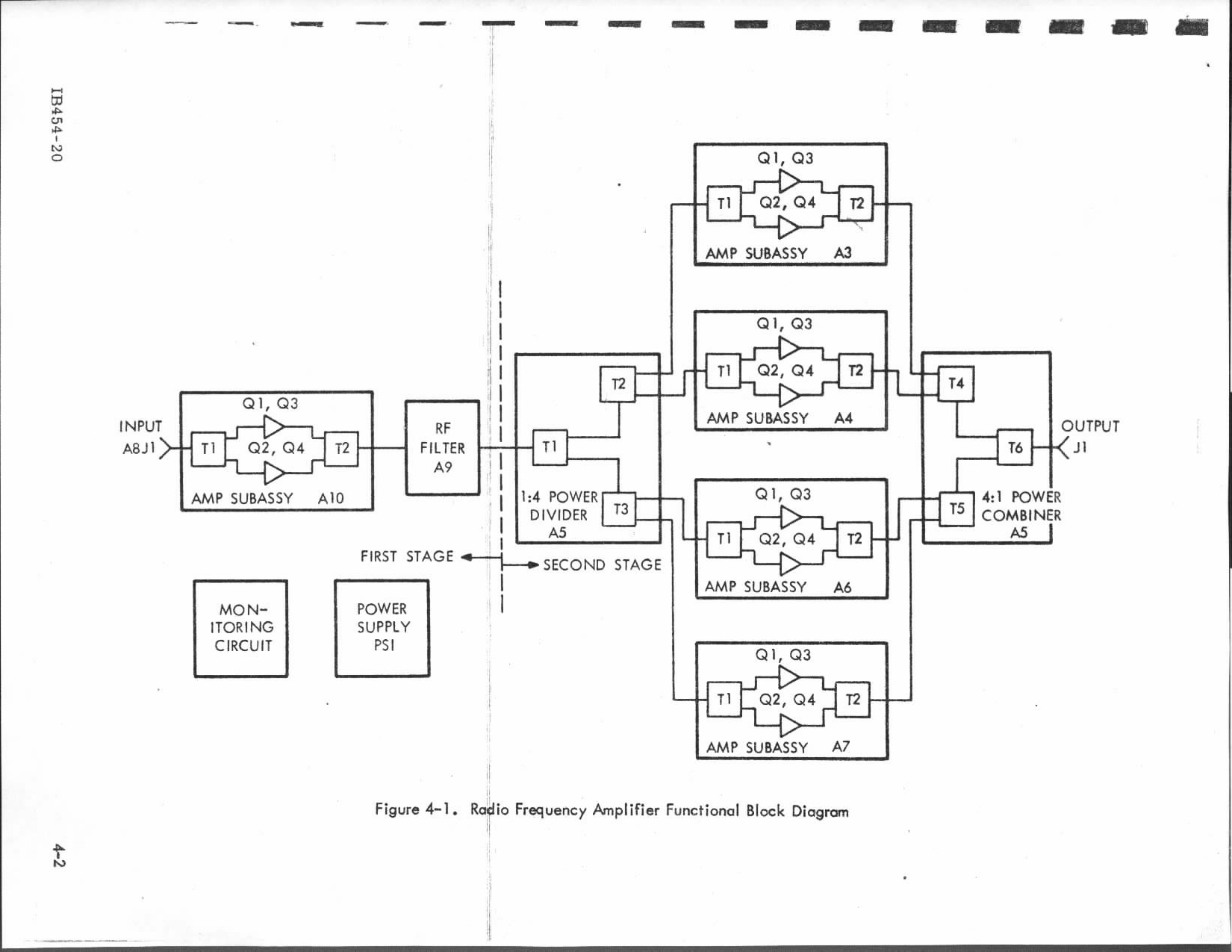

block diagram

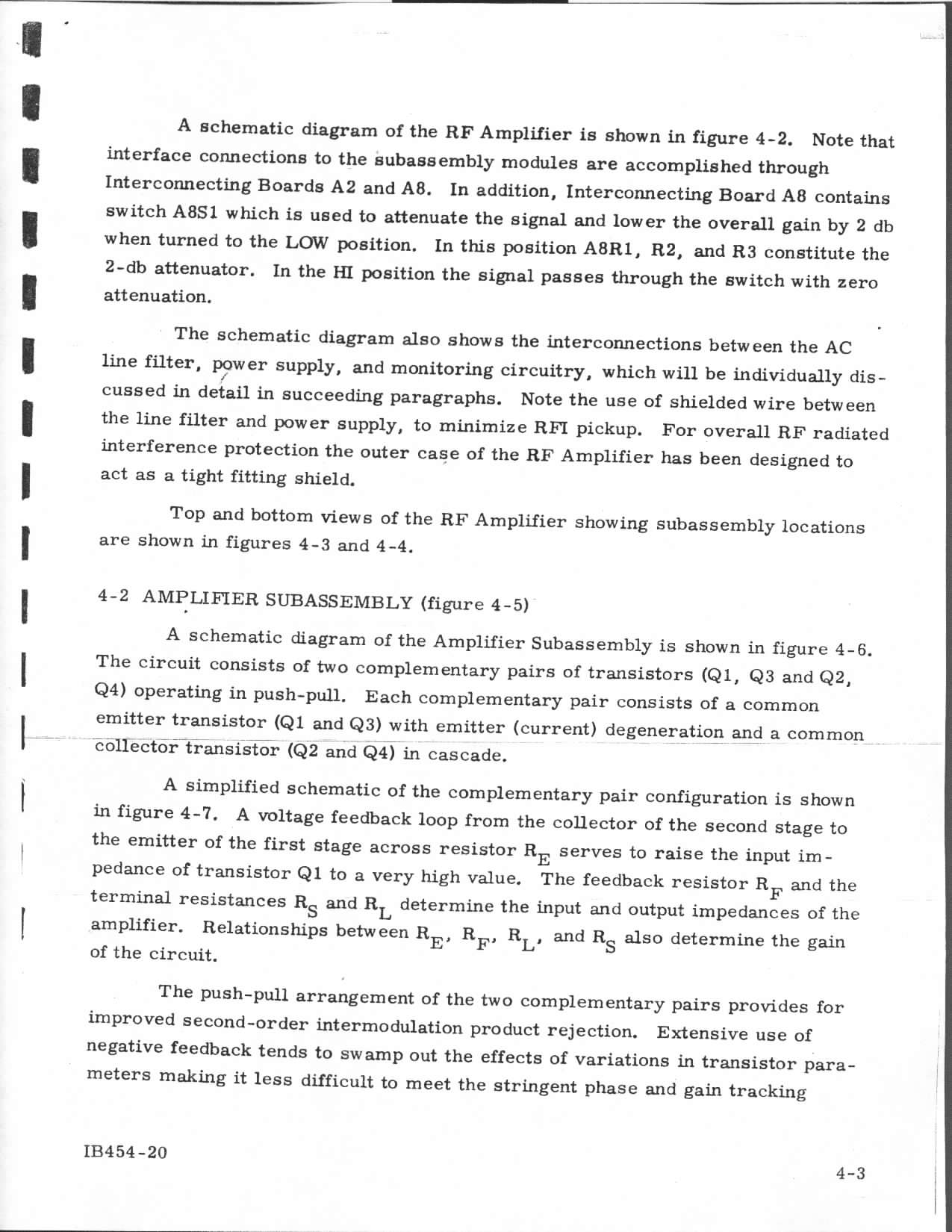

4-3

4-4

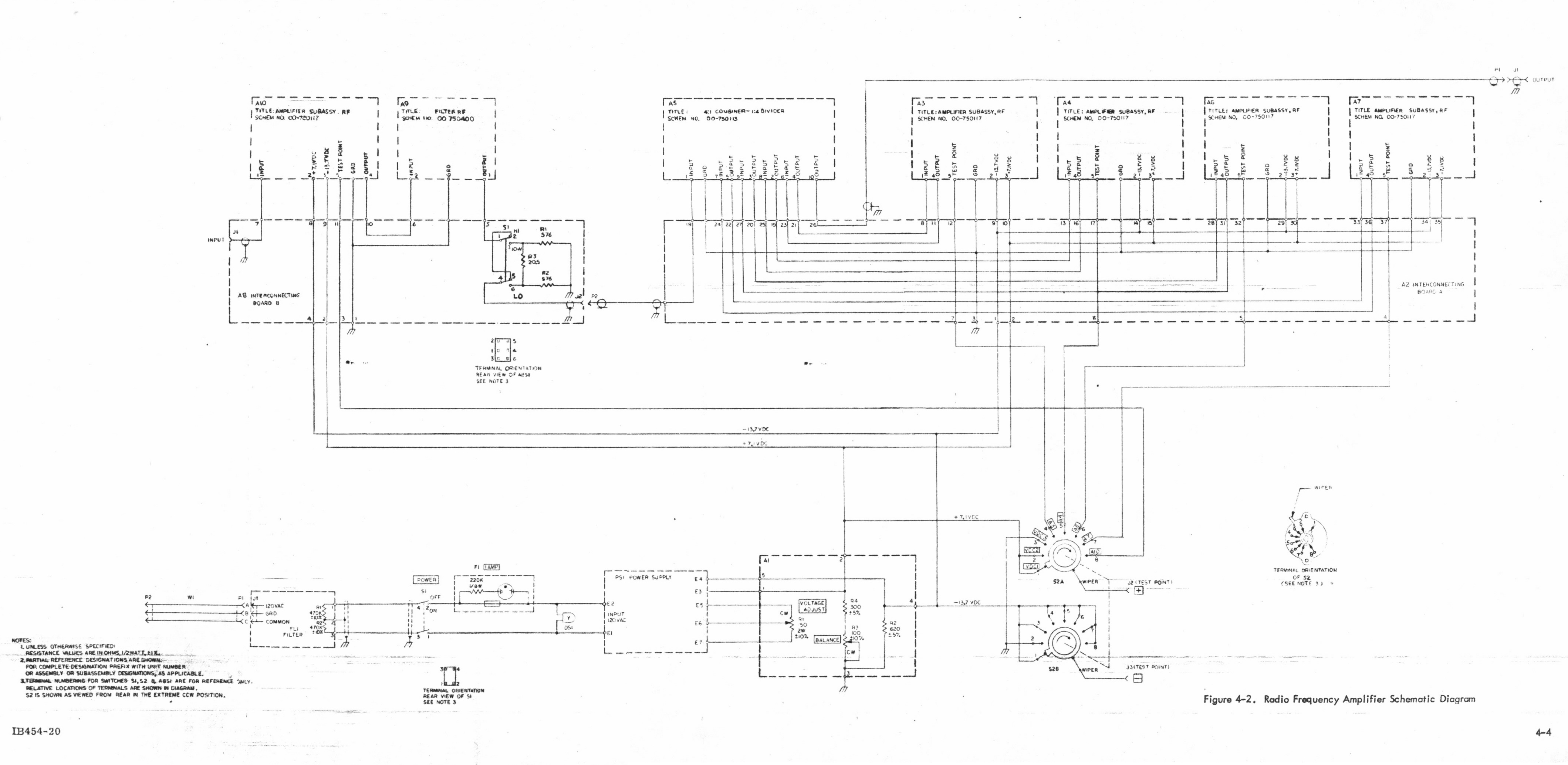

Large schematic 4240x2069

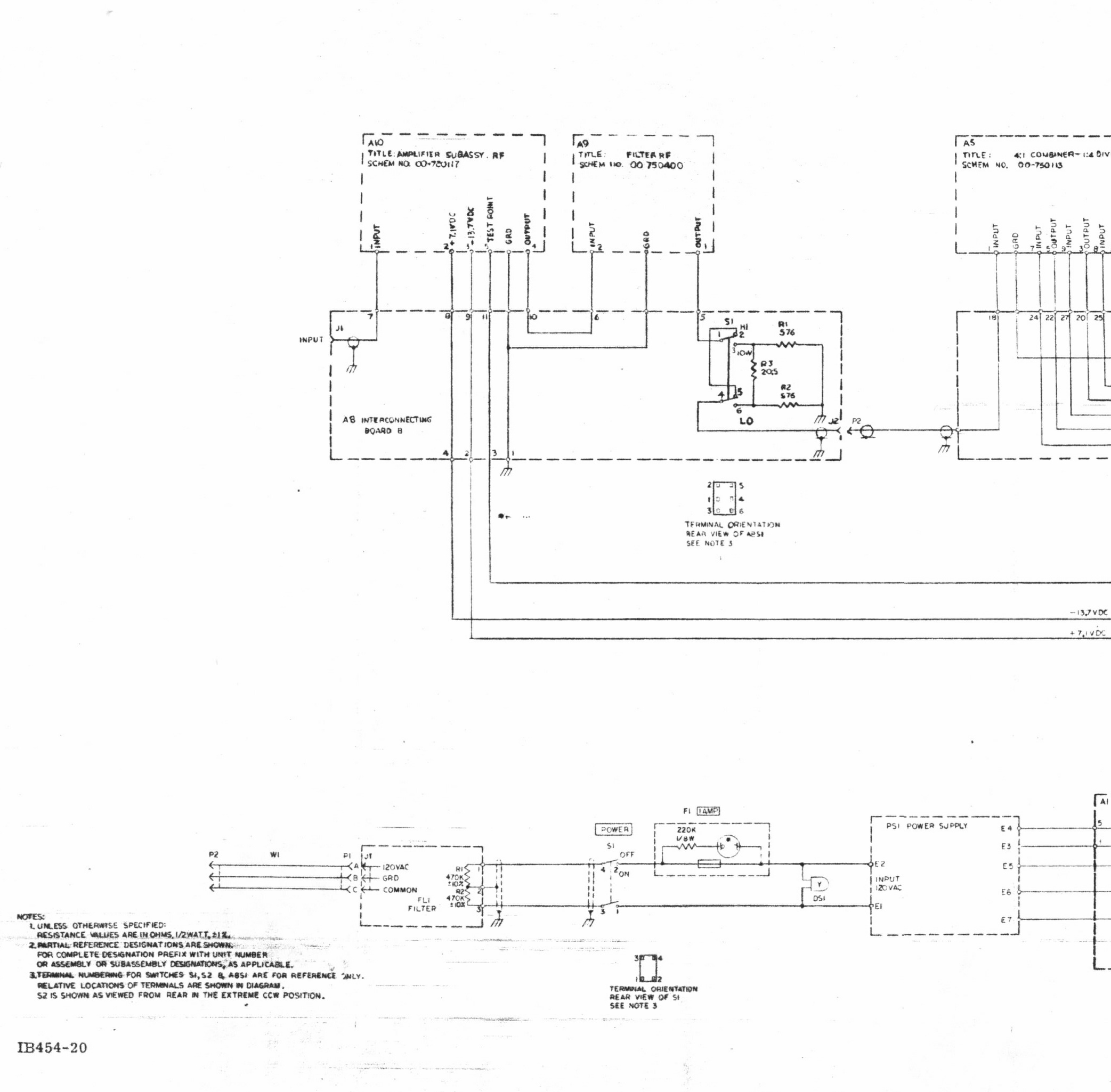

4-4 (schematic part 1)

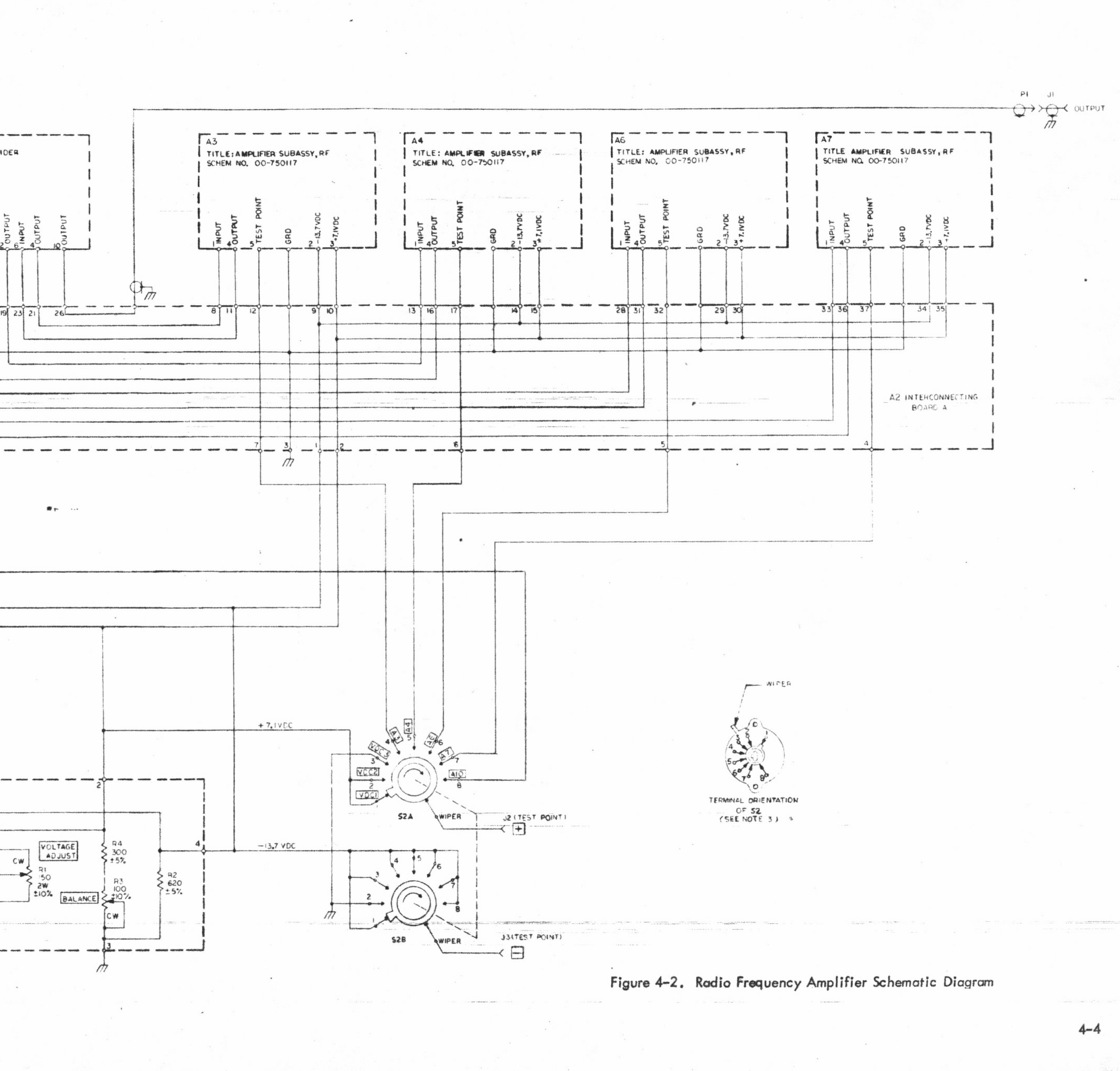

4-4 (schematic part 2)
4-5

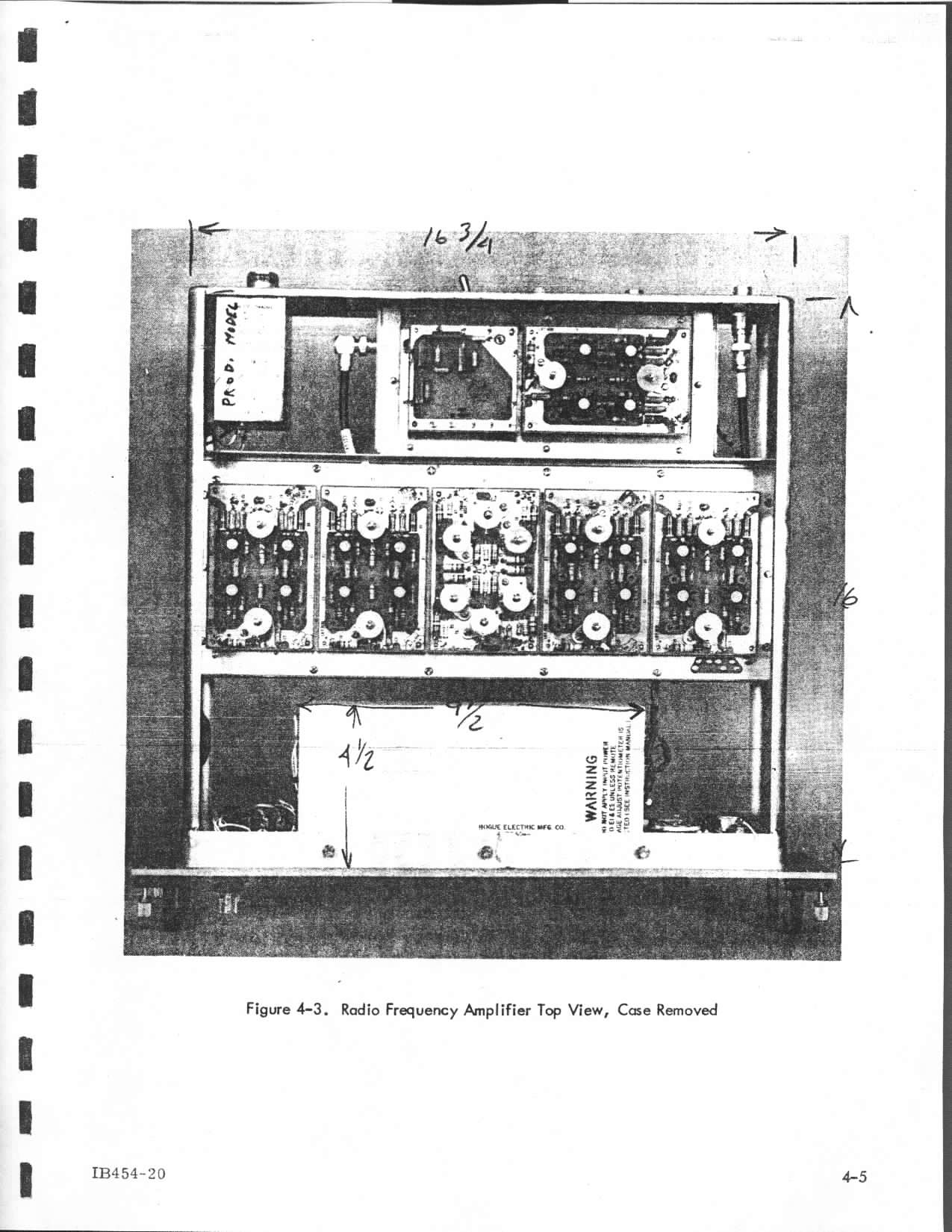

top view

4-6

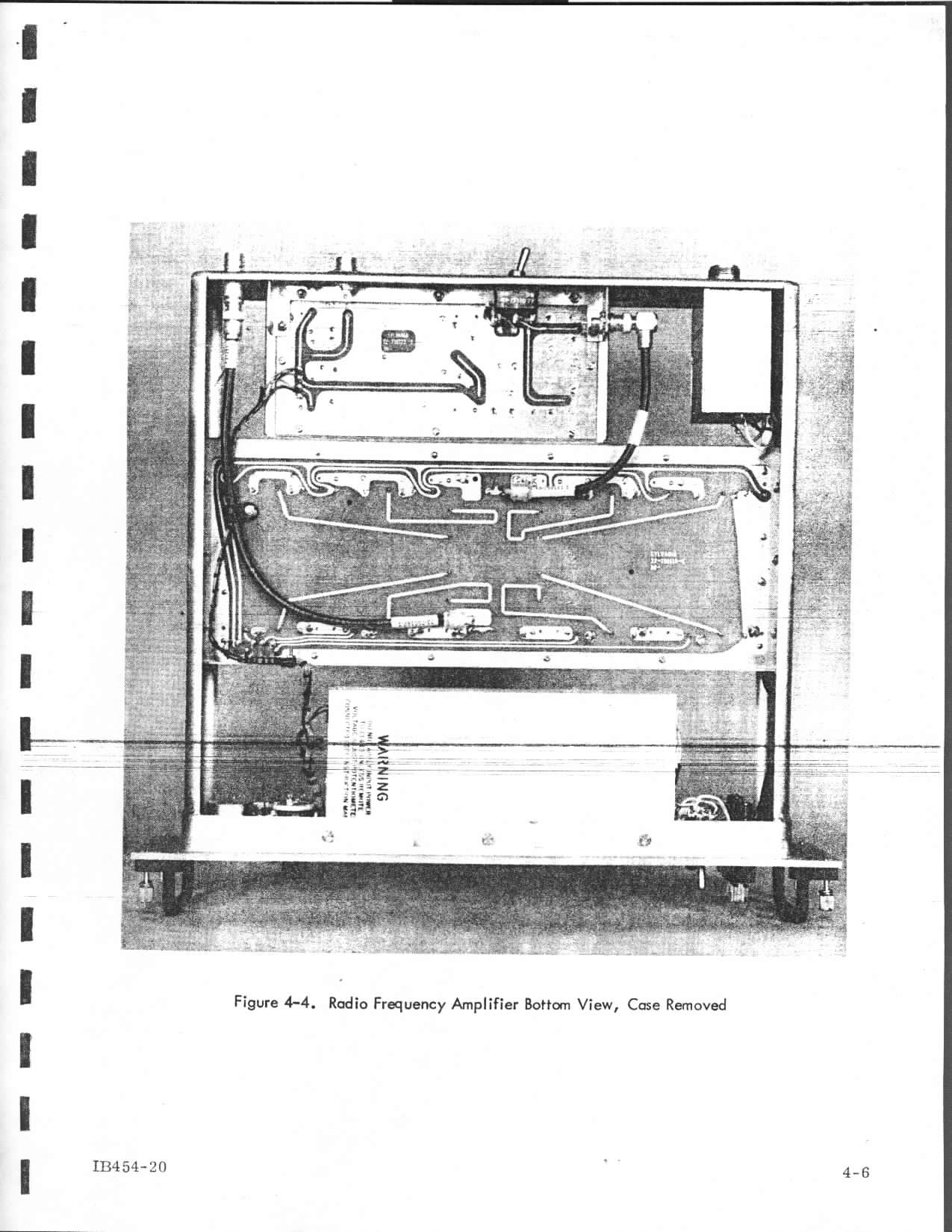

bottom view
4-7

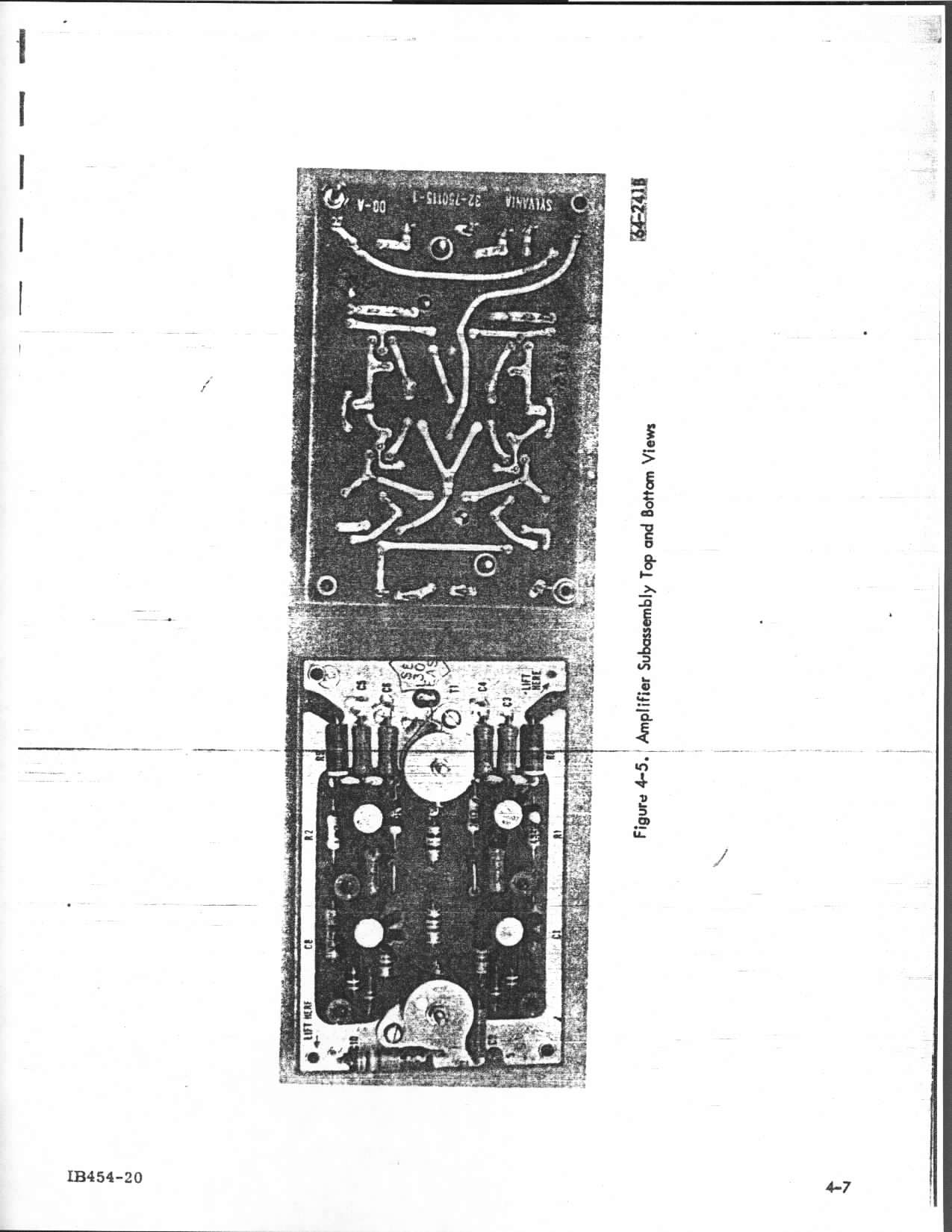

amplifier subassembly board top and bottom view
4-8

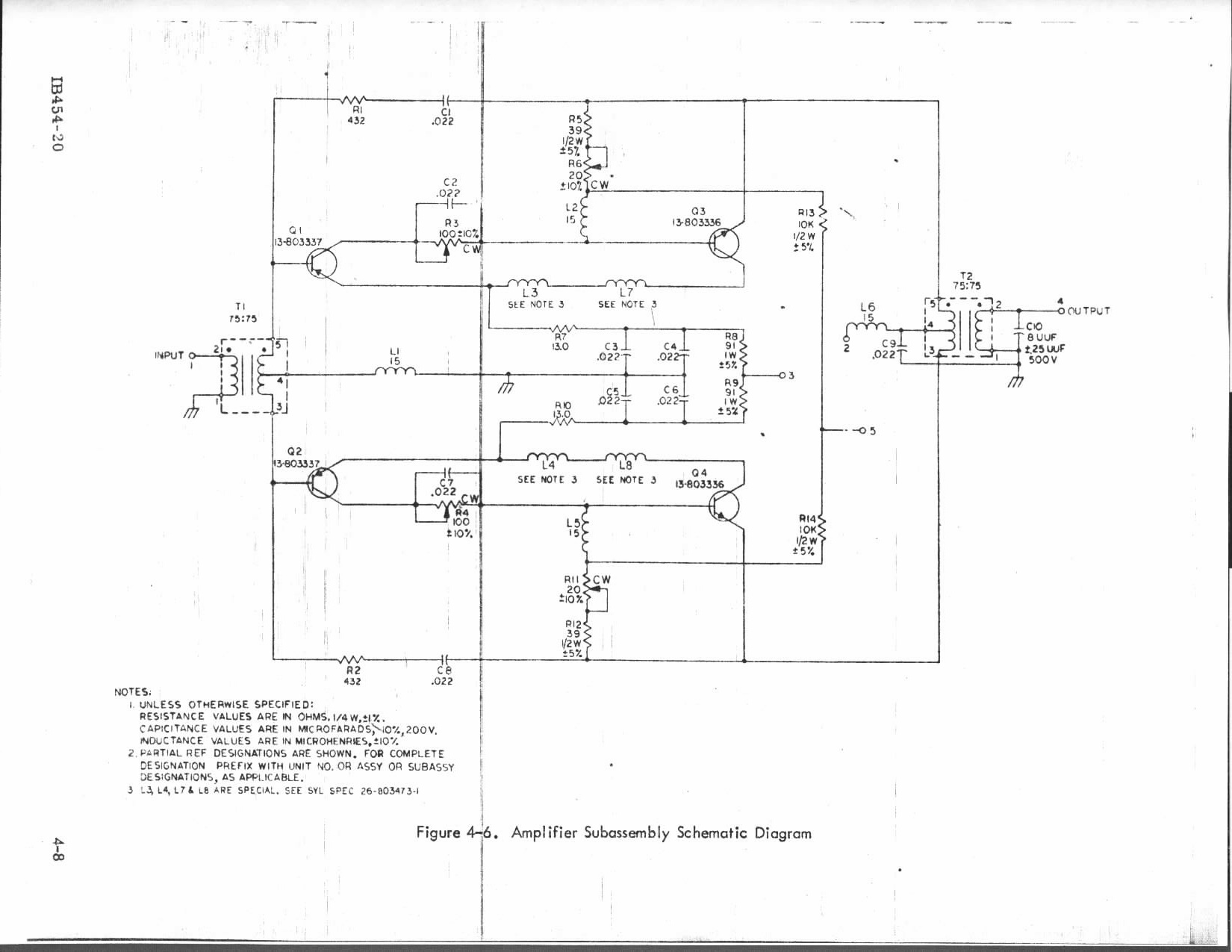

amplifier subassembly schematic
4-9

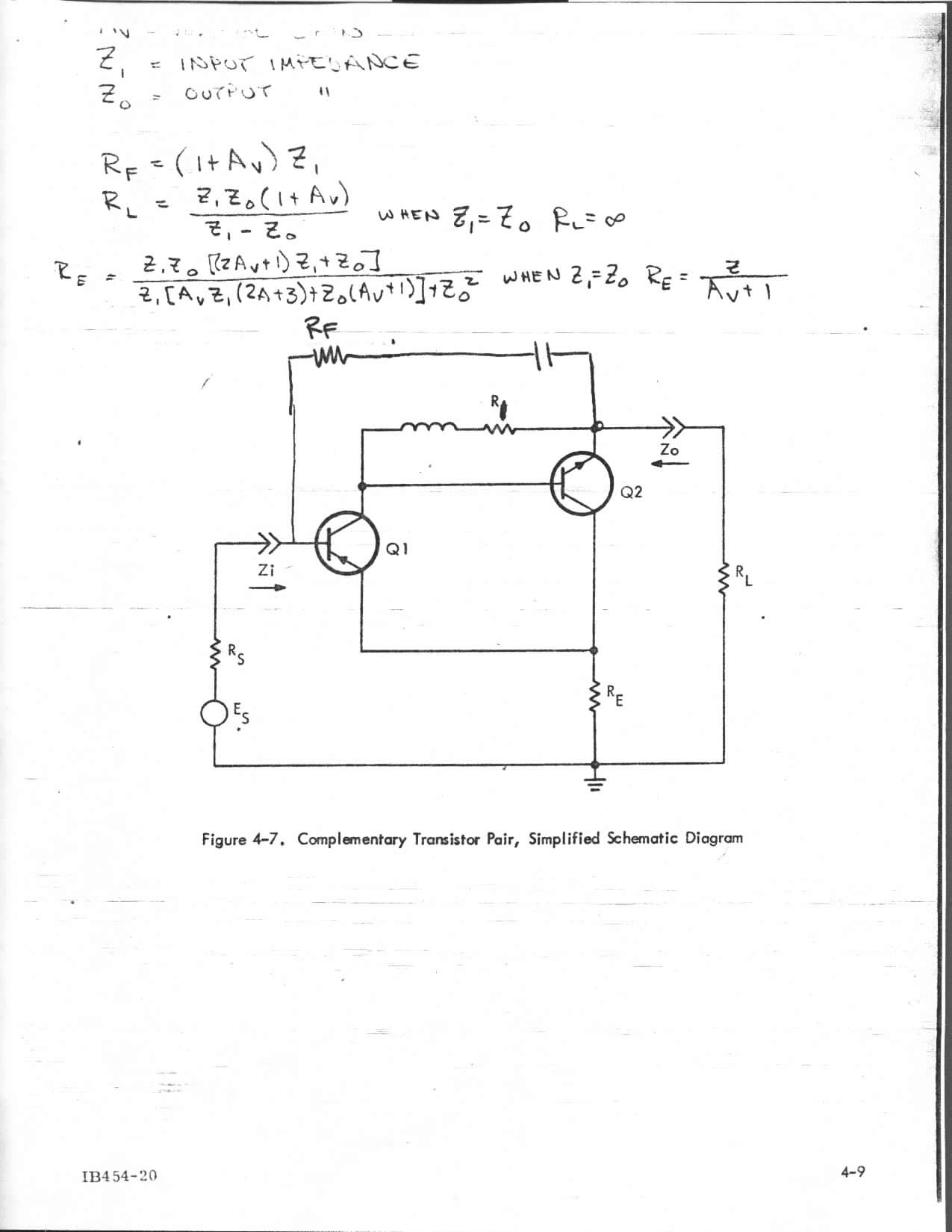

complimentary transistor pair simplified schematic

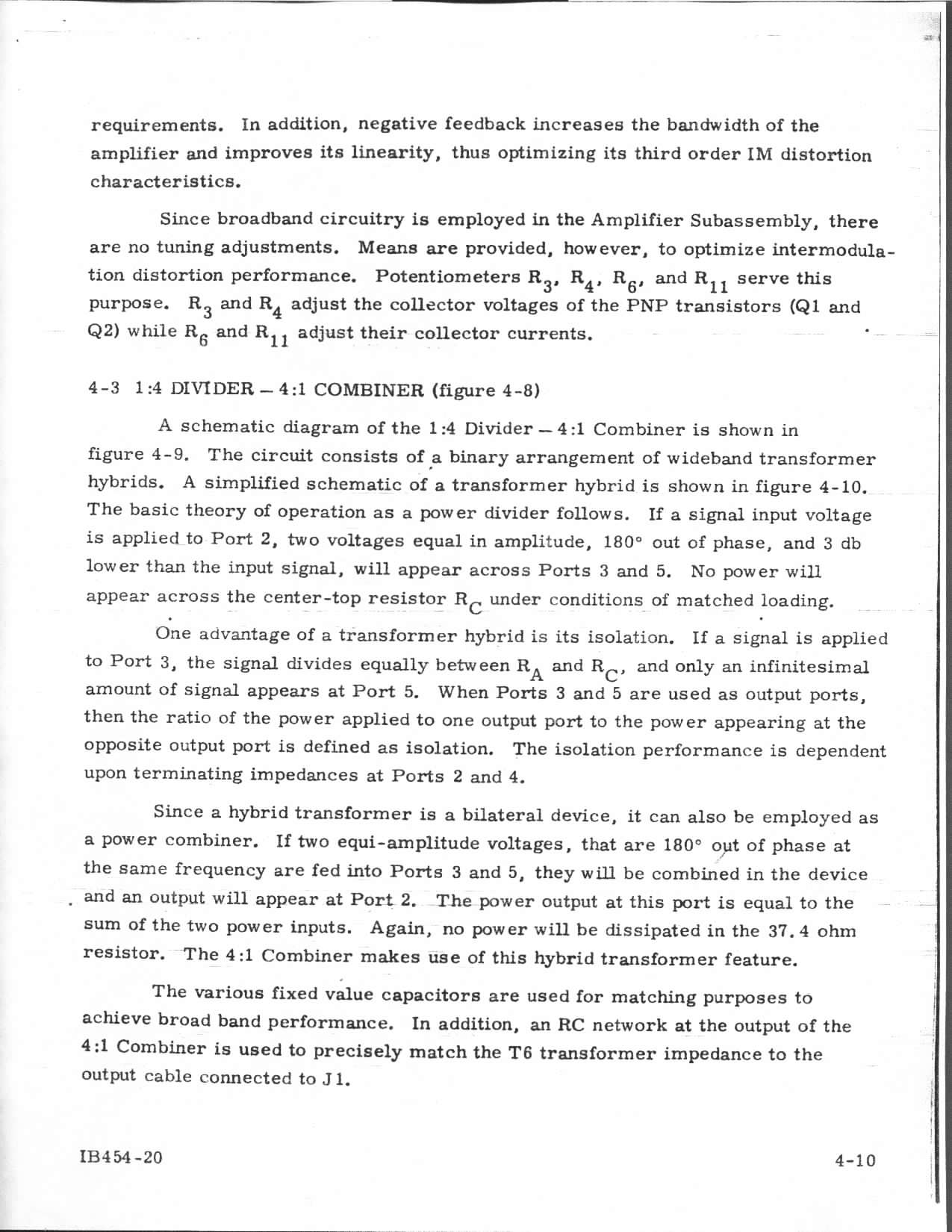

4-10
4-11

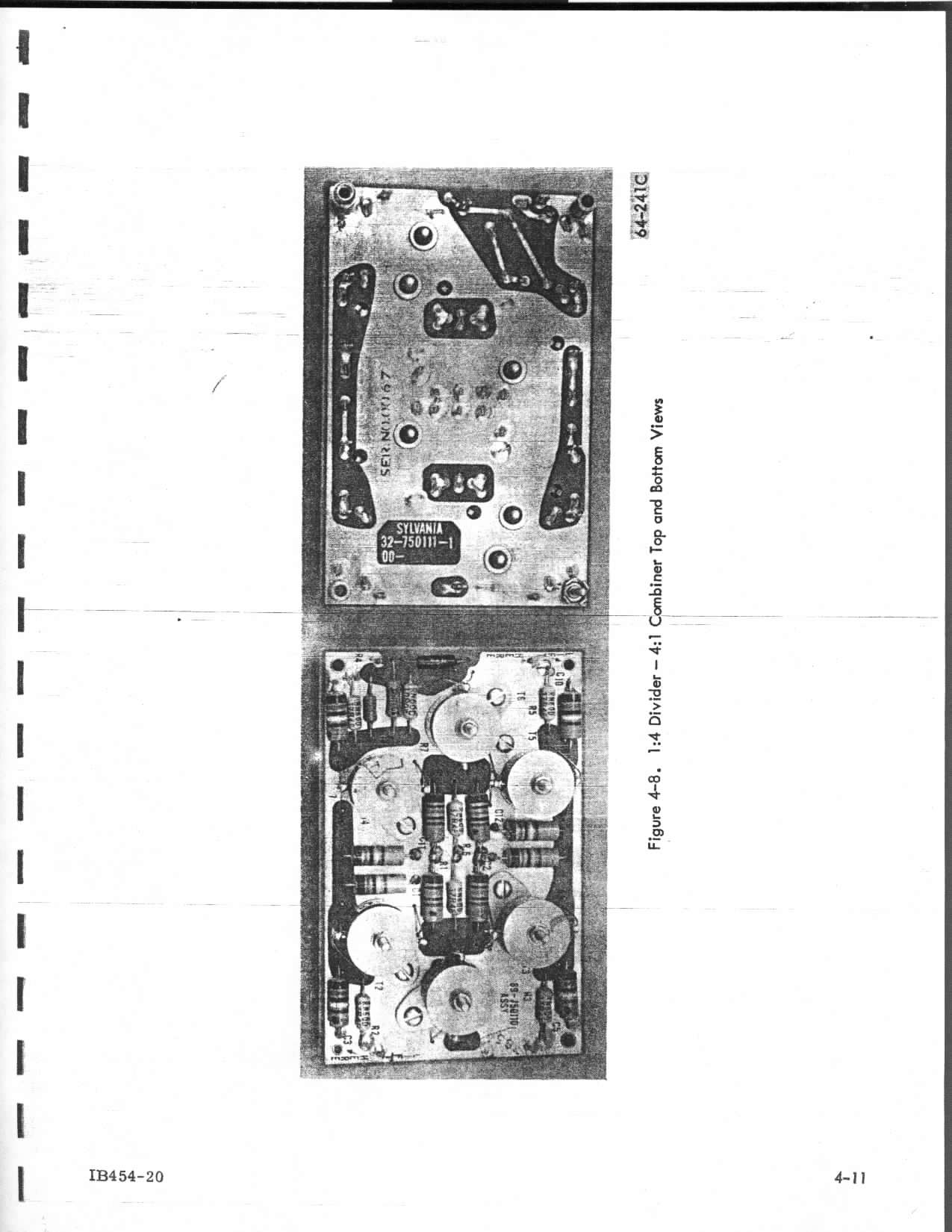

1:4 divider - 4:1 combiner top and bottom view
4-12

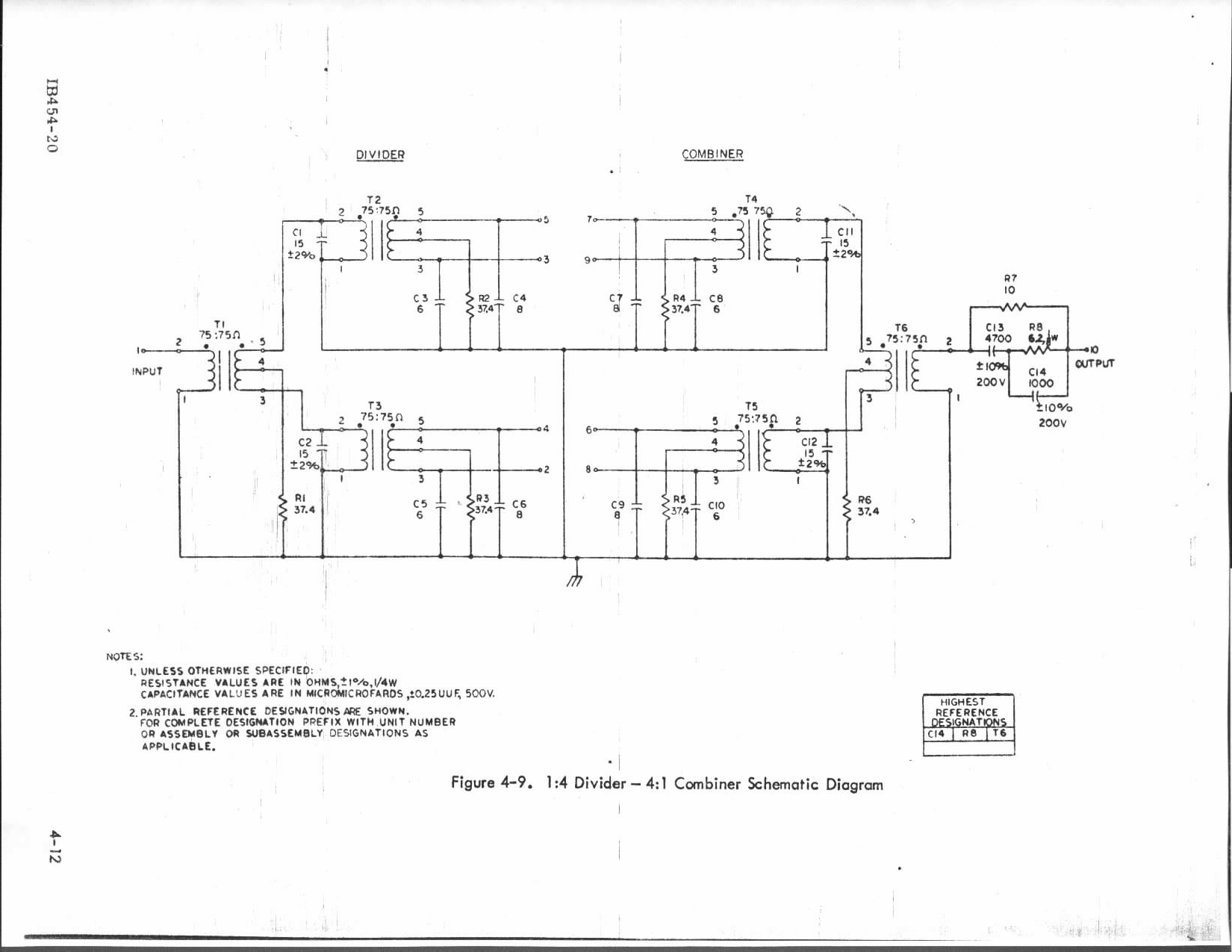

1:4 divider - 4:1 combiner schematic
4-13

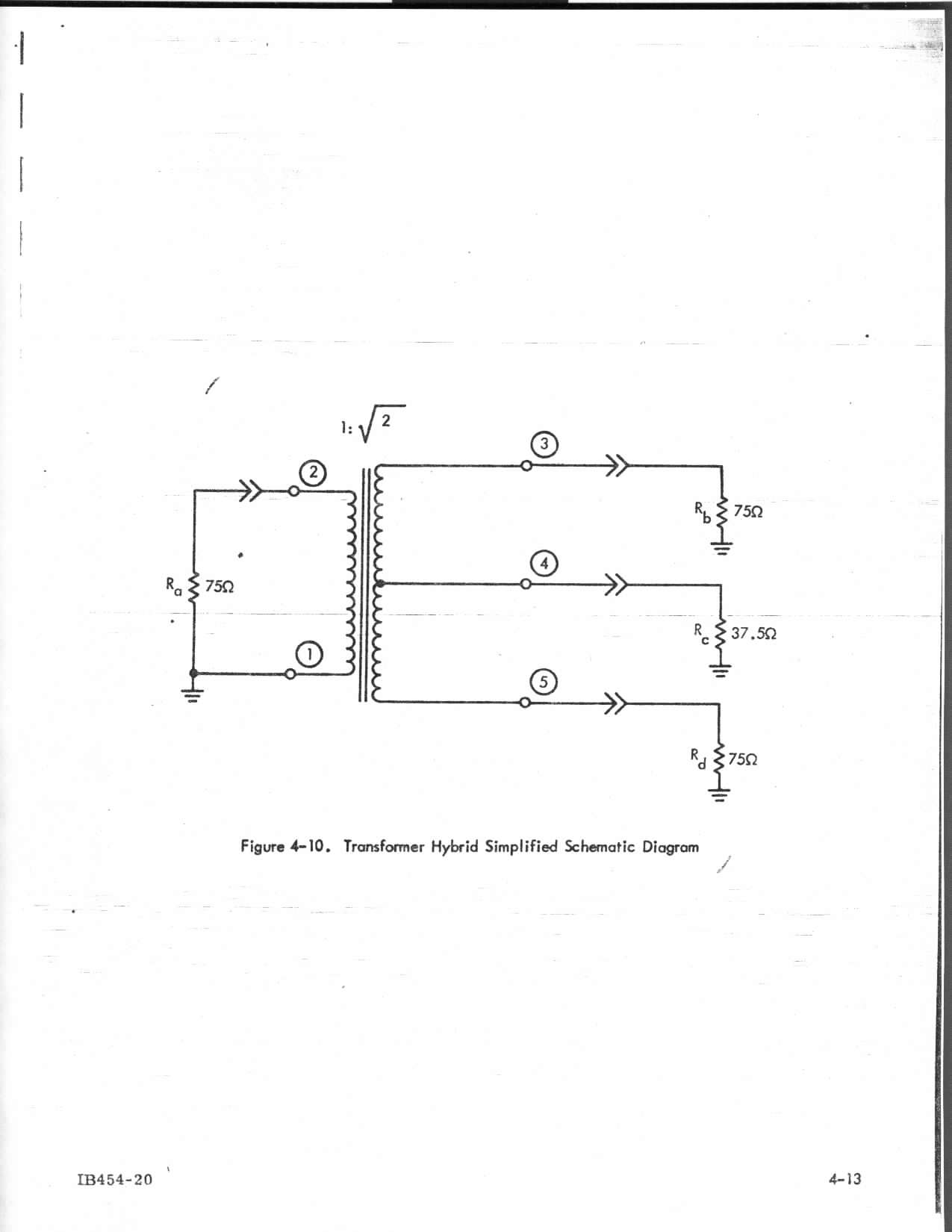

transformer hybris simplified schematic

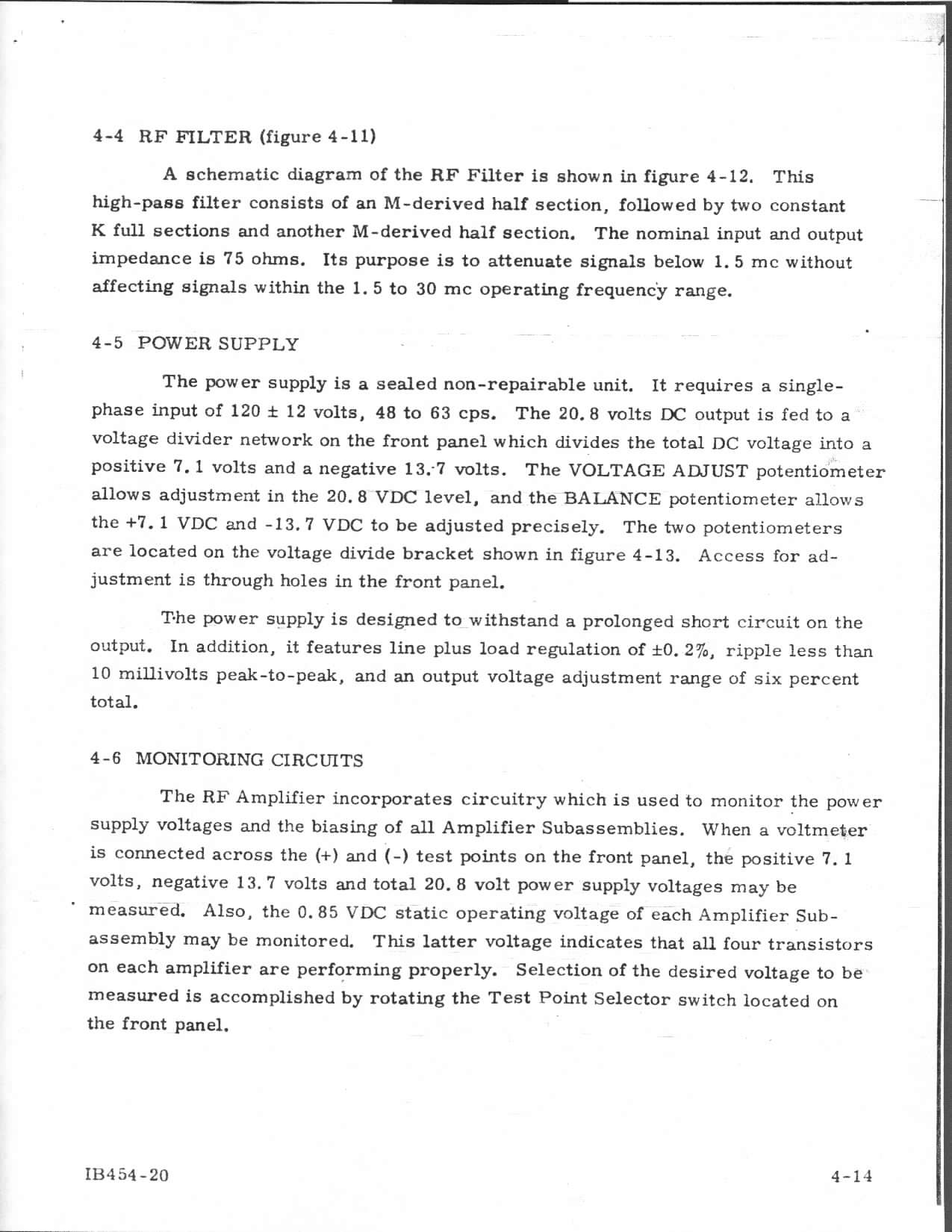

4-14
4-15

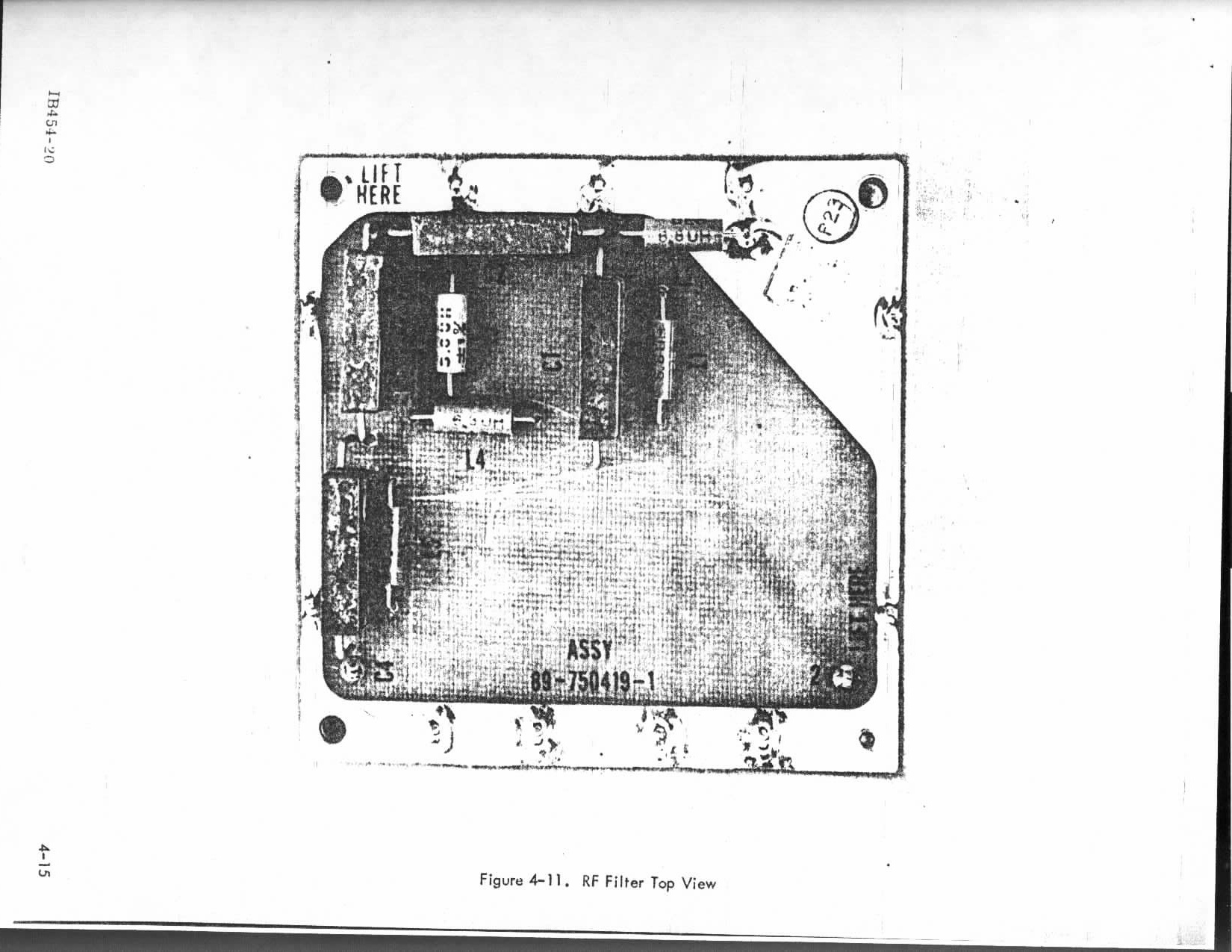

RF filter top view
4-16

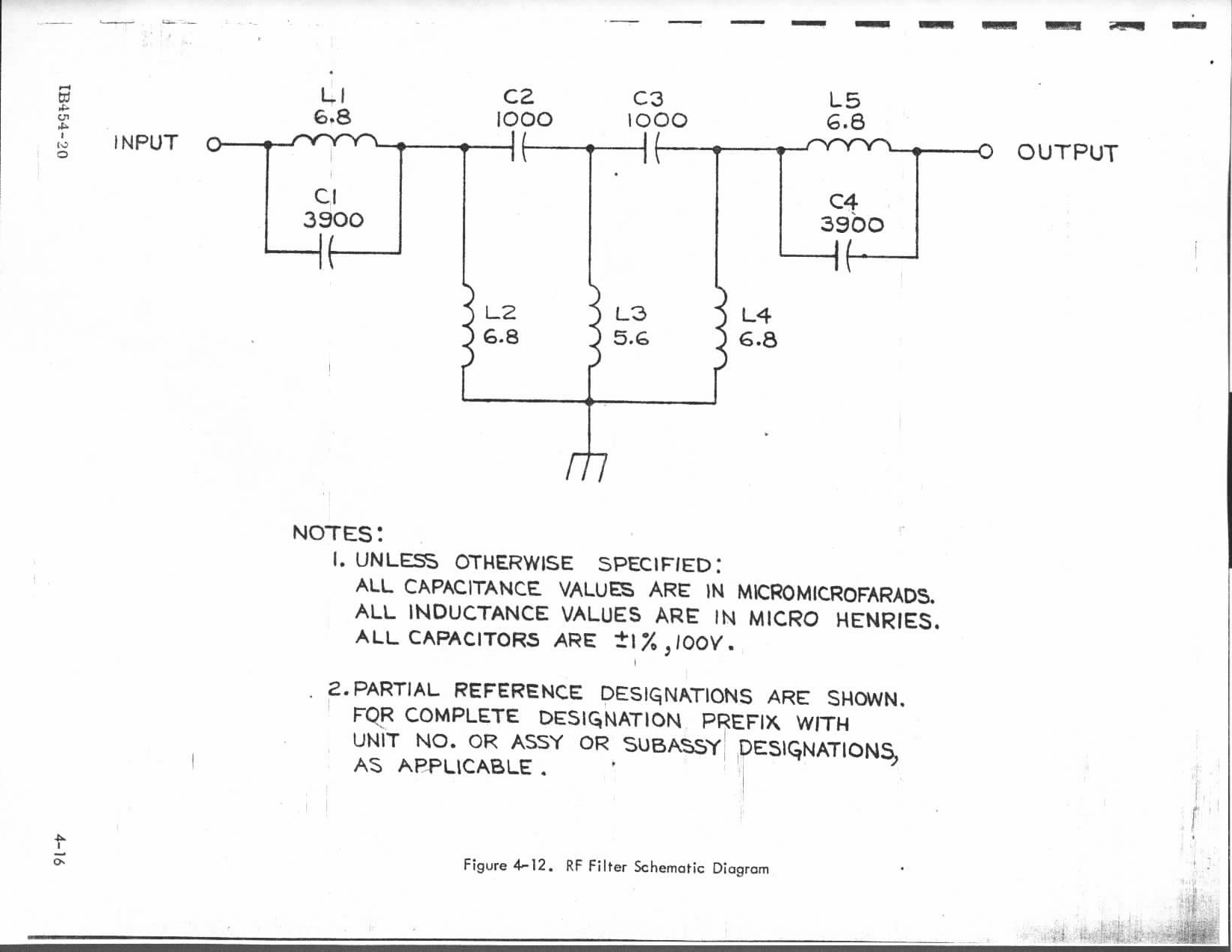

RF filter schematic
4-17

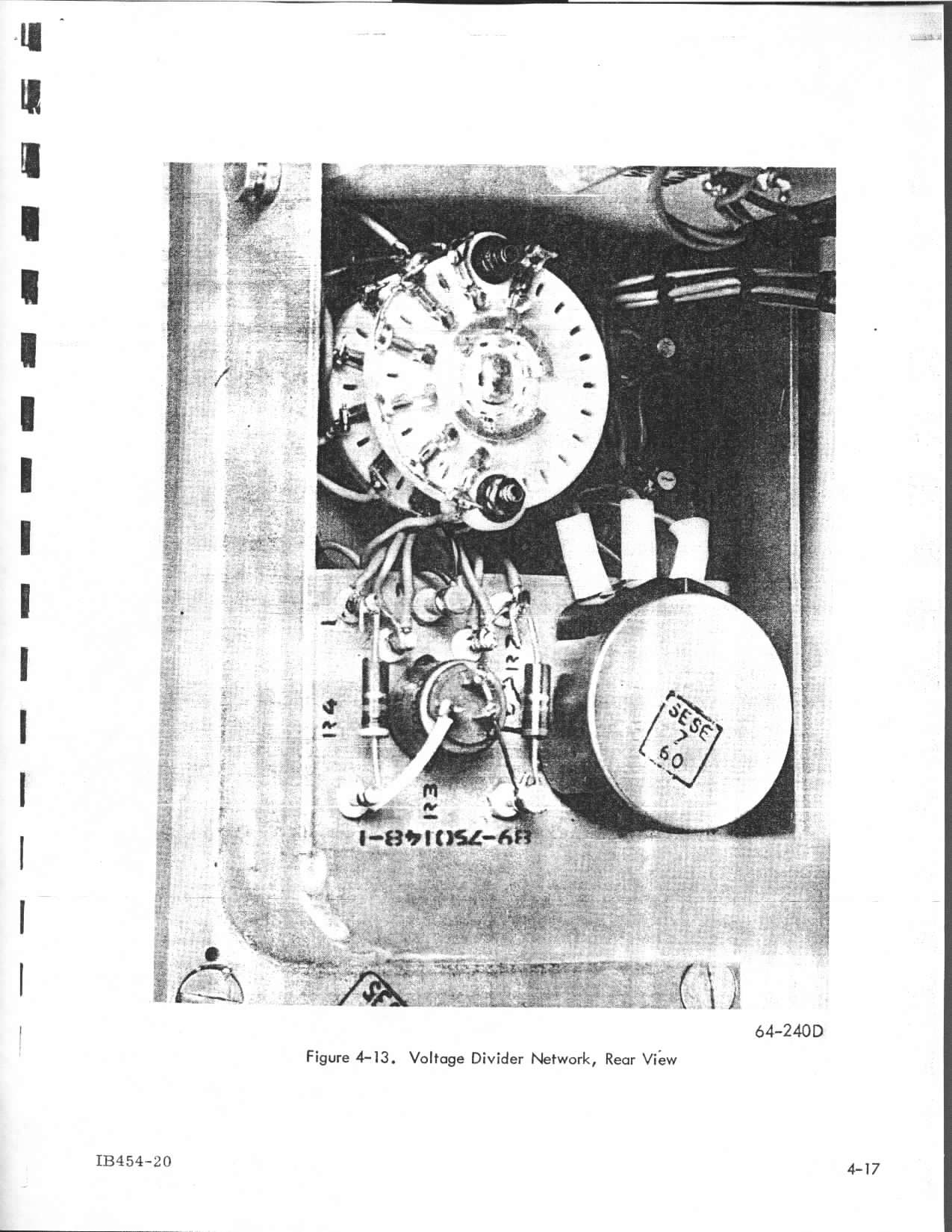

voltage divider network rear view

4-18
1-4

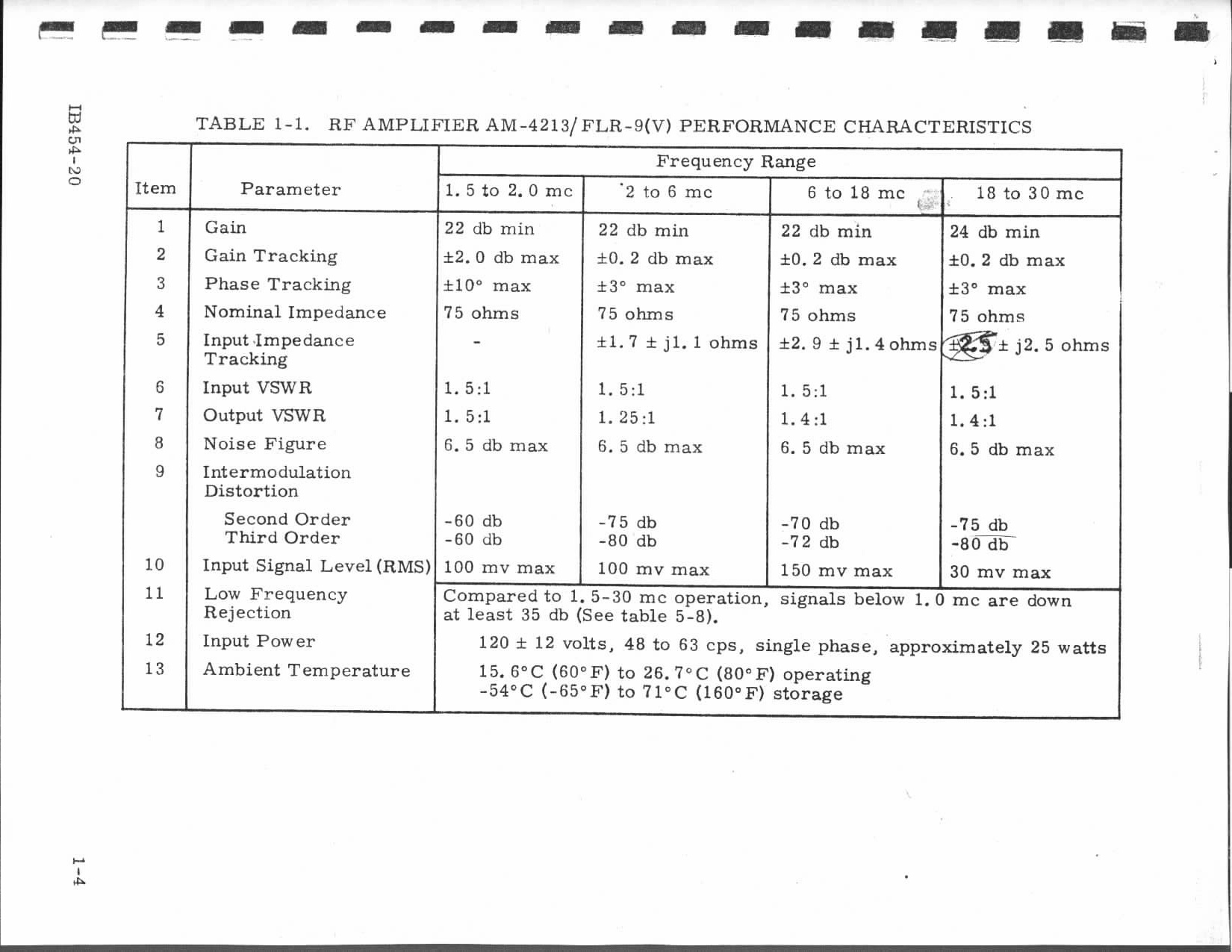

Table 1-1 performance characteristics

4-0	4-1	4-2 block diagram	4-3
4-4 Large schematic 4240x2069	4-4 (schematic part 1)	4-4 (schematic part 2)	4-5 top view
4-6 bottom view	4-7 amplifier subassembly board top and bottom view	4-8 amplifier subassembly schematic	4-9 complimentary transistor pair simplified schematic
4-10	4-11 1:4 divider - 4:1 combiner top and bottom view	4-12 1:4 divider - 4:1 combiner schematic	4-13 transformer hybris simplified schematic
4-14	4-15 RF filter top view	4-16 RF filter schematic	4-17 voltage divider network rear view
4-18	1-4 Table 1-1 performance characteristics
